Description

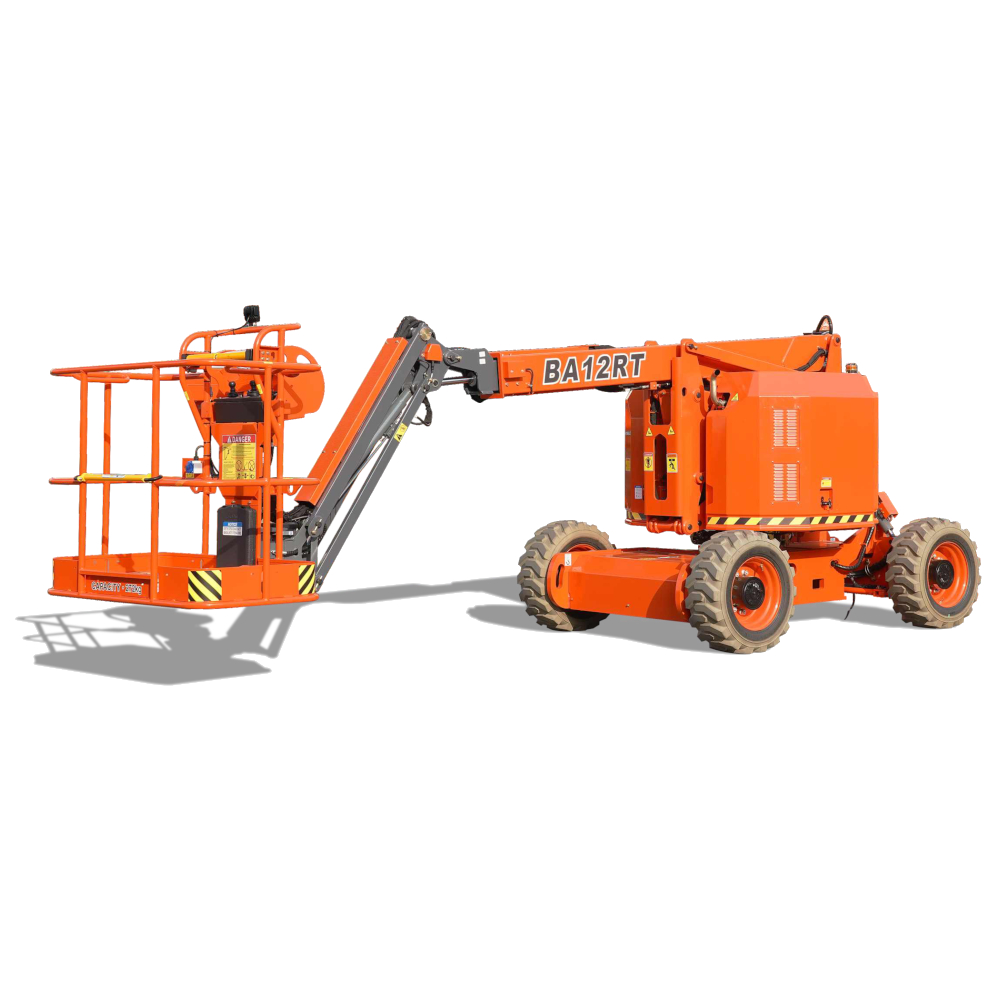

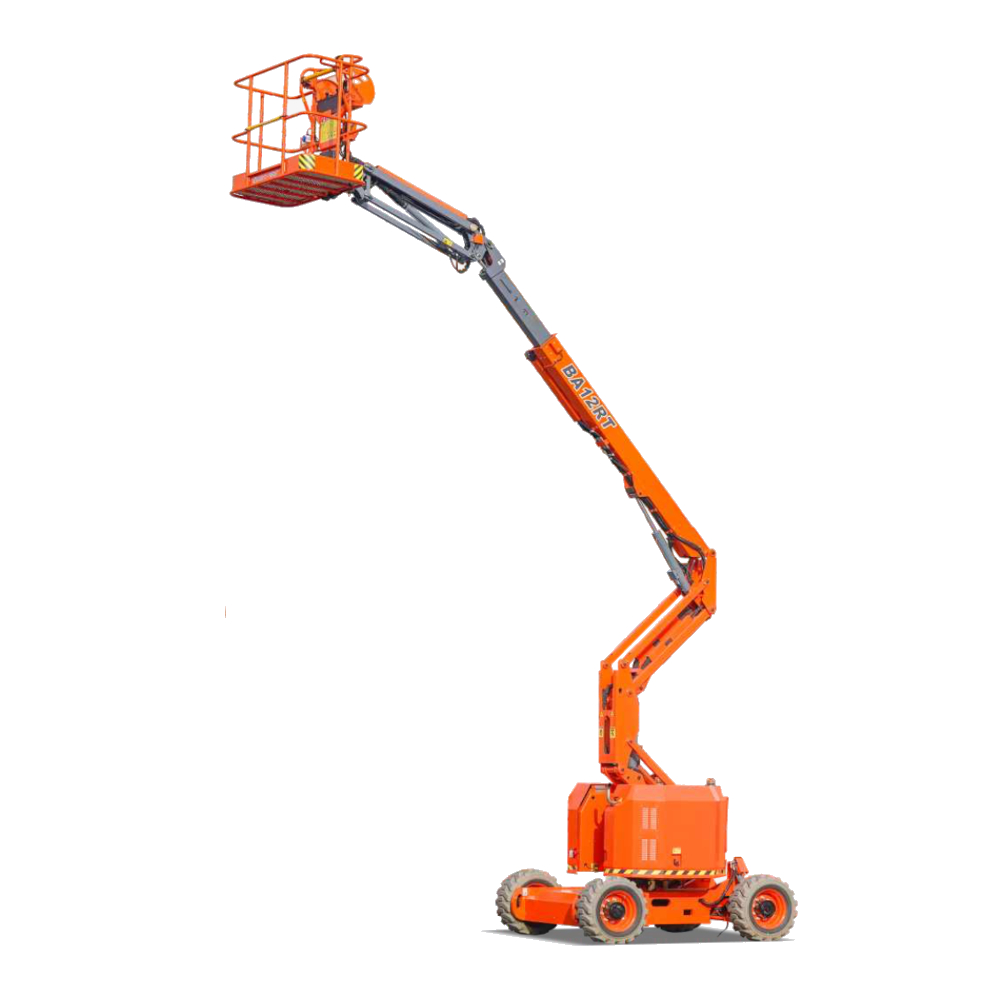

| BA12RT Articulated Boom Lift |
| Features |
| Compound Action |
| Oscillating Axle Chassis |
| Proportional Joystick Controls |
| Turntable 355° non-continuous rotation |
| Four-Wheel Drive |
| Two-Wheel Steering |
| Automatic Brake System |
| Emergency Descent System |
| Cylinder Holding Valve |
| Onboard Diagnostic System |
| Tilt Alarm |
| All Motion Alarm |
| Drivable At Full Height |
| Foam-filled Tyres |
| Horn |
| Hour Meter |
| Anti-Restart Protection |
| Flashing Beacon |
| Drive Enable |
| Platform power supply |
| Manual Brake Release |
| Lanyard Attachment Point |
| Tie-Down And Lifting Points |
| Emergency Stop Button |
| Platform Load Sense System |
| Work Light Package |
| Foot Switch |
| Anti-Extrusion Device |
| BA12RT Articulated Boom Lift | ||
| Dimension | Metric | British |
| Max. Working Height | 12.54m | 41ft 2in |
| Max. Platform Height | 10.54m | 34ft 7in |
| Max. Horizontal Reach | 6.70m | 22ft |
| Max. Up And Over Clearance | 4.80m | 15ft 9in |
| Turntable Tailswing | 0m | 0in |
| Overall Length | 5.75m | 18ft 10in |
| Overall Length (Transport) | 4.12m | 13ft 6in |
| Overall Width | 1.85m | 6ft 1in |
| Overall Height | 2.02m | 6ft 7in |
| Overall Height (Transport) | 2.10m | 6ft 11in |
| Platform Size (Length ×Width) | 1.42×0.76m | 4ft 8in×2ft 6in |
| Larger Platform Size (Length ×Width) | 1.80×0.76m | 5ft 11in×2ft 6in |
| Ground Clearance | 0.17m | 7in |
| Wheelbase | 1.88m | 6ft 2in |
| Turning Radius (Inside/Outside) | 1.80/4.10m | 5ft 11in/13ft 5in |
| Tyres | 16.5-10 | 16.5-10 |
| BA12RT Articulated Boom Lift | ||
| Performance | Metric | British |
| S.W.L | 272kg | 600lb |
| Larger Platform Size S.W.L | 227kg | 500lb |
| Max. Occupants (Indoor/Outdoor) | 2/2 | 2/2 |
| Gradeability | 45% | 45% |
| Turret Rotation | 355°Discontinuity | 355°Discontinuity |
| Platform Rotation | 180° | 180° |
| Jib Movement | +74°/-65° | +74°/-65° |
| Travel Speed (Stowed) | ≯ 4.8km/h | ≯ 2.98mph |
| Travel Speed (Raised) | ≯ 0.8km/h | ≯ 0.49mph |
| Max. Working Slope (X/Y) | 3°/4.5° | 3°/4.5° |
| BA12RT Articulated Boom Lift | ||
| Weight & Power | Metric | British |
| Overall Weight | 5400kg | 11905lb |
| Diesel Engine | D1105 18.2kW/3000rpm | D1105 18.2kW/3000rpm |
| Diesel Tank | 40L | 10gal |
| Hydraulic Tank | 75L | 19gal |
| Emergency Power System | 12VDC | 12VDC |
| BA12RT Articulated Boom Lift |
Note: Parameters with “★” are optional
