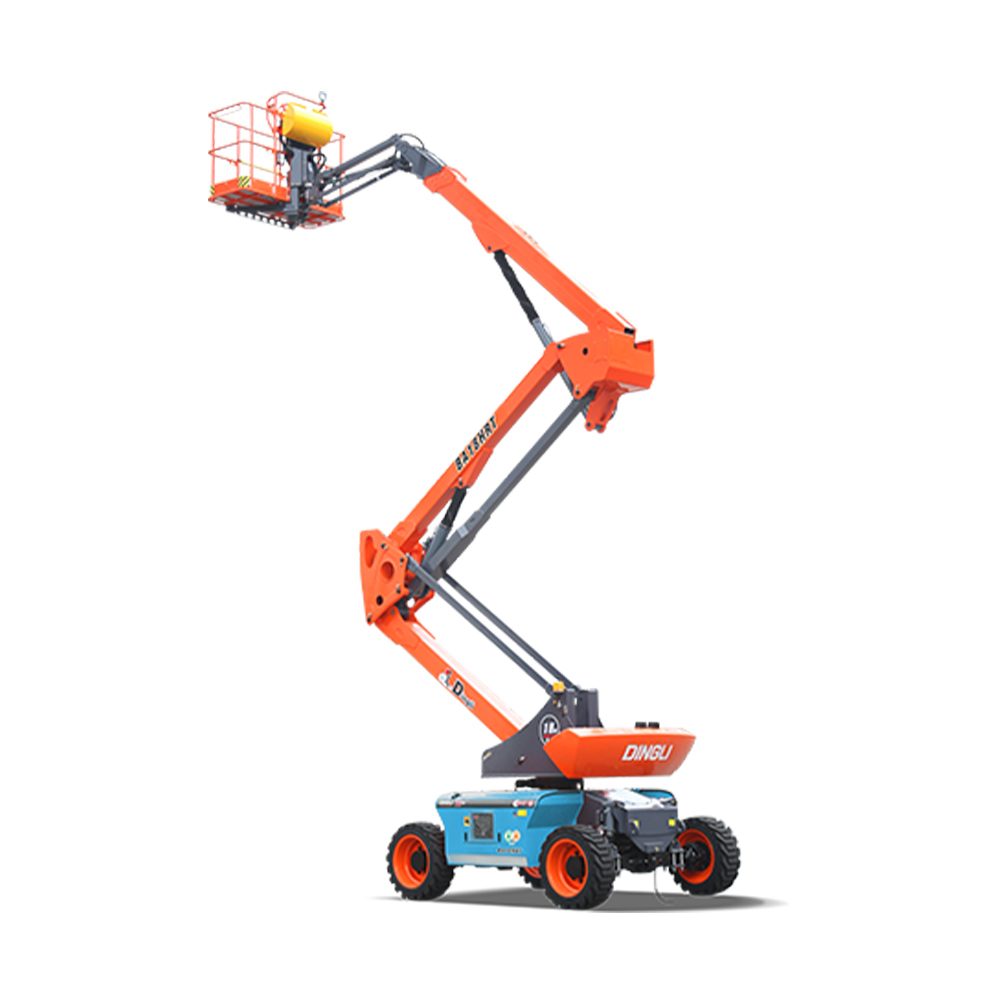

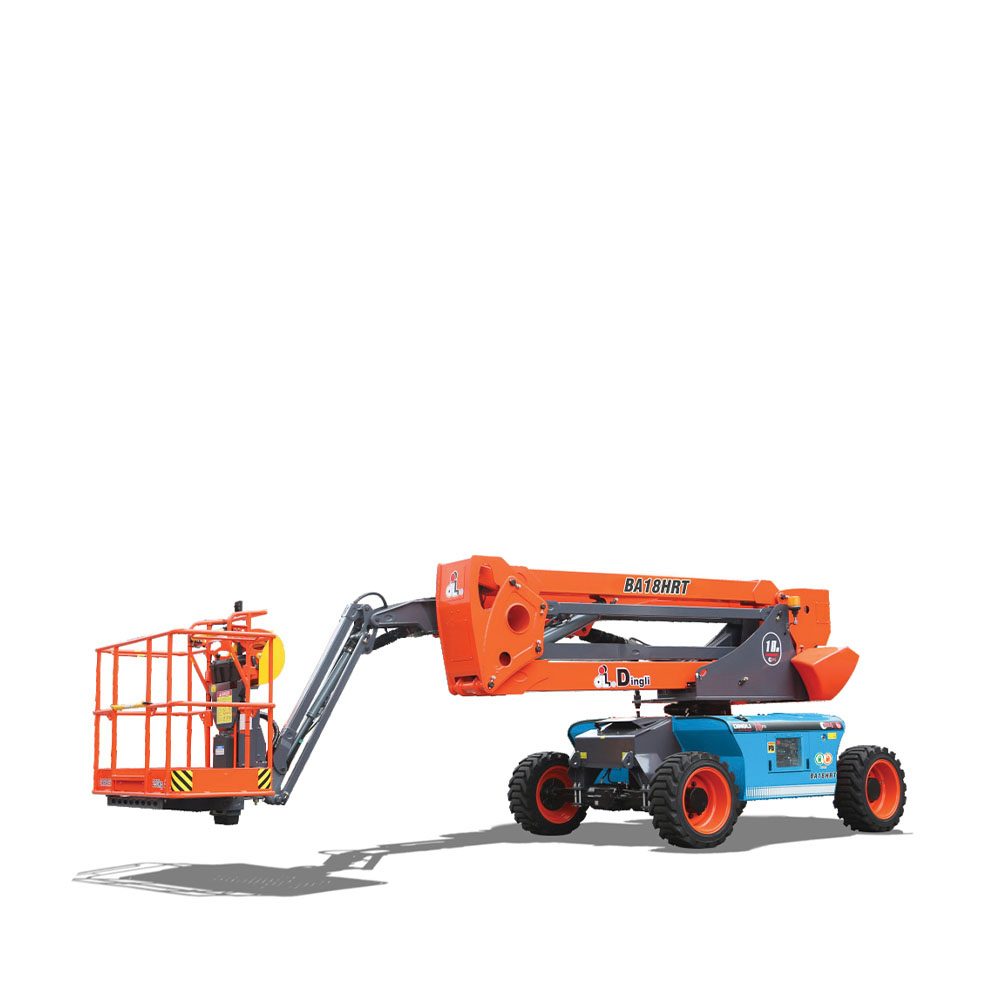

BA18 – Rough Terrain Knuckle Boom Lift

D Series

Below ground reachable, large range of horizontal outreach;
Developed by DINGLI’s domestic R&D Center;
Modular design horizontally & vertically, 85% of the components common in the full range;
Equipped with integrated axle, four-wheel drive & two-wheel steering;
Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
Driveable at full height with large load of 320kg;
Suitable for standard container transport;
Equipped with 18.2kw low-power engine.

Description

BA18CRT2 – Boom Lift
Features
1.50m (4ft 11in) Jib
Front Oscillating Axle
Two-Wheel Steering
Four-Wheel Drive
Self-Leveling Platform
180° Left And Right Swing Platform
Proportional Joystick Controls
Thumb Rocker Steer
Drive Enable
AC Power Cord To Platform
Tilt Alarm
Descent Alarm
Flash
Horn
Hour Meter
Integral Integrated Special Drive Axle For Construction Machinery
360° Continuous Turntable Rotation
Positive Traction Four Wheel Drive
Platform Load Sense System
Fault Diagnosis System
Operator Anti-crushing Protection System
Harsh Environment Kits
12V DC Auxiliary Power
Battery 48V/320Ah
Driving Motor 9kW 4834rpm
Lifting Motor 13kW 1855rpm

BA18CRT2 – Boom Lift
Size	Metric	British
Max. Working Height	18.11m	59ft 5in
Max. Platform Height	16.11m	52ft 10in
Max. Operating Range(+0.6m)	9.45m	31ft
Max. Platform Range	8.85m	29ft
Overall Length(Stowed)	7.41m	24ft 4in
Overall Length(Transport)	5.47m	17ft 11in
Overall Width(Stowed)	2.44m	8ft
Overall Height(Stowed)	2.55m	8ft 4in
Overall Height(Transport)	2.59m	8ft 6in
Platform Size(Length×Width)	1.83m×0.79m	6ft×2ft 7in
Turntable Tailswing	0.13m	5in
Ground Clearance	0.31m	1ft
Wheelbase	2.40m	7ft 10in
TurningRadius(Inside/Outside)	3.0m/4.73m	9ft 10in/15ft 6in
Tyres	315/55 D20	315/55 D20
Max. Up And Over Clearance	8.18m	26ft 10in
Max. Down Probing Depth	0.68m	2ft 3in
