Description

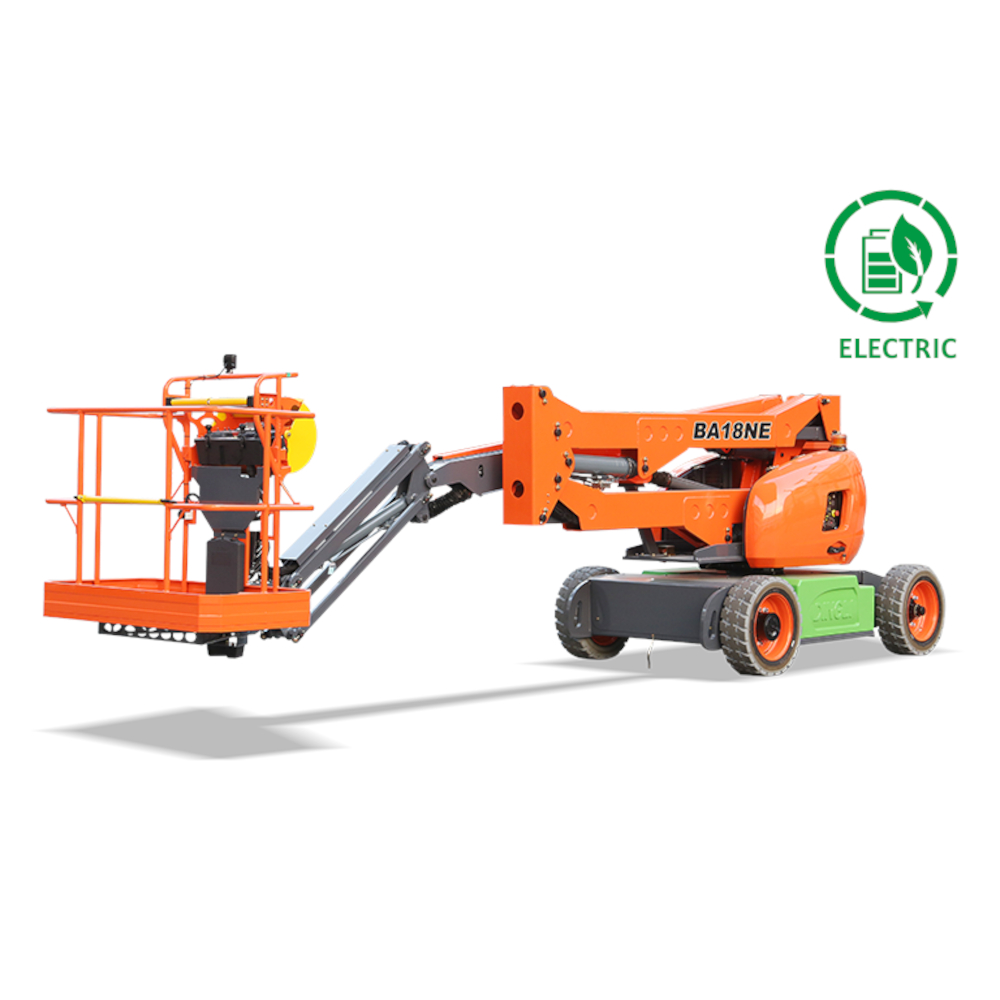

| Electric – BA18NE – Boom Lift |
| Features |
| Proportional Controls |
| Manual Safety Pump |
| Hour Meter |
| Tilt Sensor |
| 360° Turntable Rotation |
| Self-leveling Platform |
| Deadman |
| Foam-filled Tyres |
| Two-Wheel Steering |
| Two-Wheel Drive |
| Flashing Beacon |
| All Motion Alarm |
| Onboard Diagnostic System |
| Horn |
| Zero Emission |
| Electric – BA18NE – Boom Lift | ||
| Size | Metric | British |
| Max. Working Height | 18.00m | 59ft 1in |
| Max. Platform Height | 16.00m | 52ft 6in |
| Max. Operating Range | 8.30m | 27ft 3in |
| Max. Platform Range | 7.70m | 25ft 3in |
| Up And Over Clearance | 8.90m | 29ft 2in |
| Overall Length(Stowed) | 7.21m | 23ft 8in |
| Overall Length(Transport) | 6.10m | 20ft |
| Overall Width(Stowed) | 1.73m | 5ft 8in |
| Overall Height(Stowed) | 2.00m | 6ft 7in |
| Platform Size(Length×Width) | 1.45m×0.76m | 4ft 9in × 2ft 6in |
| Turntable Tailswing | 0 | 0 |
| Ground Clearance | 0.20m | 8in |
| Wheelbase | 2.00m | 6ft 7in |
| TurningRadius(Inside/Outside) | 2.08m/3.30m | 6ft 10in/10ft 10in |
| Tyres | 17.5×6.75 | 17.5×6.75 |
| Electric – BA18NE – Boom Lift | ||
| Performance | Metric | British |
| SWL | 230kg | 507lb |
| Max. Occupants | 2 | 2 |
| Gradeability | 25% | 25% |
| Travel Speed(Stowed) | 6.1km/h | 3.8mph |
| Travel Speed(Raised) | 1.1km/h | 0.7mph |
| Max. Working Slope | X-3°/Y-3° | X-3°/Y-3° |
| Turret Rotation | 360 °Discontinuity | 360 °Discontinuity |
| Platform Rotation | 180° | 180° |
| Jib Movement | 130° | 130° |
| Electric – BA18NE – Boom Lift | ||
| Weight & Power | Metric | British |
| Weight | 7420kg | 16358lb |
| Battery | 48V/300Ah | 48V/300Ah |
| Charger | 48V/35A | 48V/35A |
| Hydraulic Oil Tank | 30L | 7.9gal |
| Electric – BA18NE – Boom Lift |
Note: Parameters with “★” are optional
