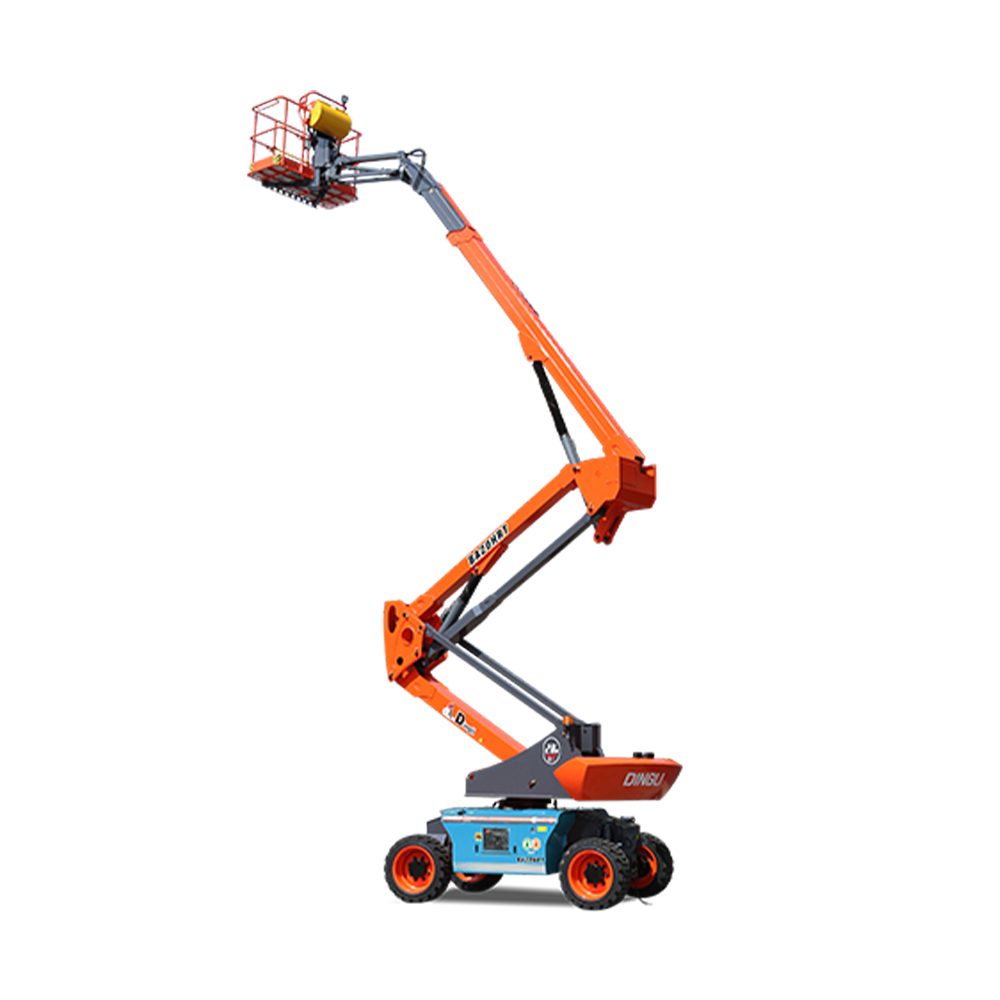

An Elevated Platform Services boom lift for sale in New Zealand

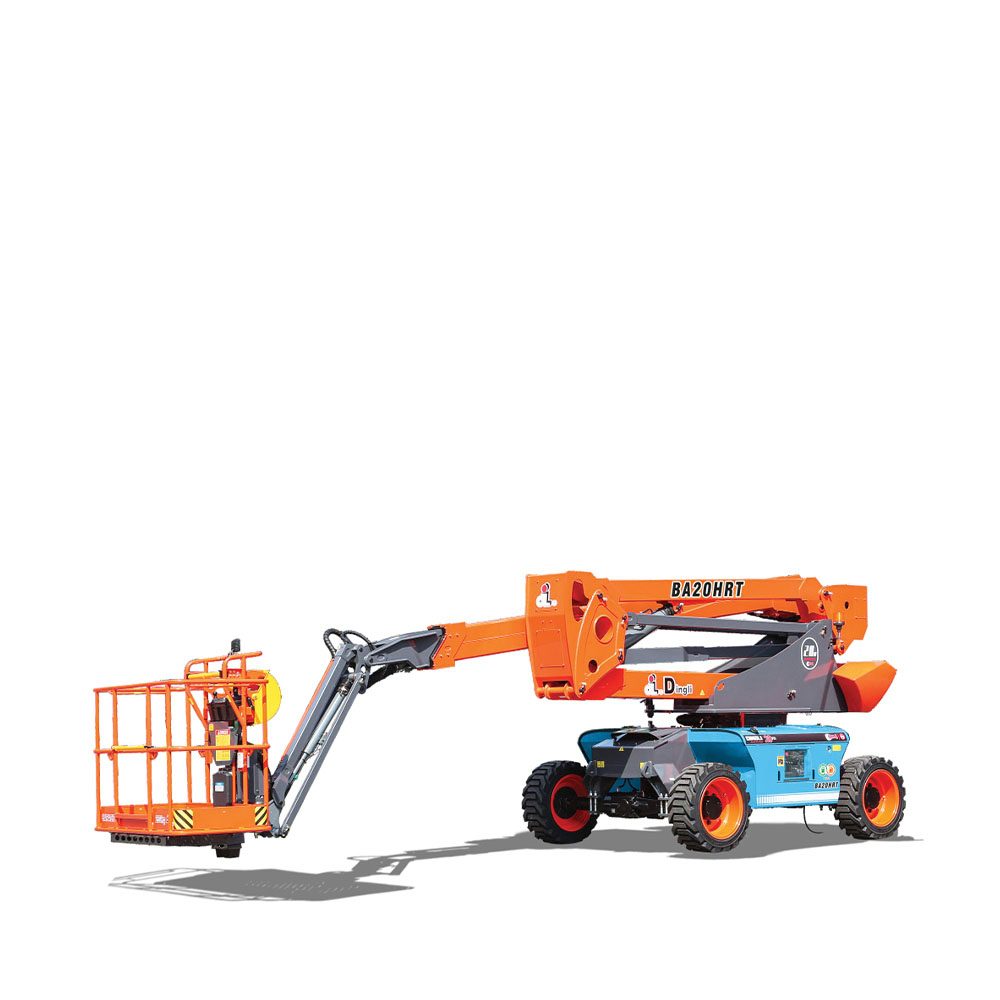

An elevated work platform boom lift for sale in New Zealand
An Elevated Platform Services boom lift for sale in New Zealand
An elevated work platform boom lift for sale in New Zealand

Available In:

DieselMild HybridHybridElectric

BA20 – Rough Terrain Knuckle Boom Lift

D Series

  • Below ground reachable, large range of horizontal outreach;
  • Developed by DINGLI’s domestic R&D Center;
  • Modular design horizontally & vertically, 85% of the components common in the full range;
  • Equipped with integrated axle, four-wheel drive & two-wheel steering;
  • Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;
  • Driveable at full height with large load of 320kg;
  • Suitable for standard container transport;
  • Equipped with 18.2kw low-power engine.
ADD TO QUOTE
Categories: , Tag:

Description

BA20CRT2 – Boom Lift
Features
1.50m (4ft 11in) Jib
Front Oscillating Axle
Two-Wheel Steering
Four-Wheel Drive
Self-Leveling Platform
180° Left And Right Swing Platform
Proportional Joystick Controls
Thumb Rocker Steer
Drive Enable
AC Power Cord To Platform
Tilt Alarm
Descent Alarm
Flash
Horn
Hour Meter
Integral Integrated Special Drive Axle
For Construction Machinery
360° Continuous Turntable Rotation
Positive Traction Four Wheel Drive
Platform Load Sense System
Fault Diagnosis System
Operator Anti-crushing Protection System
Harsh Environment Kits
12V DC Auxiliary Power
Kubota D1105 18kW 2600rpm Diesel Engine
Hydraulic Oil Radiator
Anti-restart Engine Protection
Anti-reverse Engine Device
Auto Engine Fault Shutdown
BA20CRT2 – Boom Lift
Size Metric British
Max. Working Height 20.15m 66ft 1in
Max. Platform Height 18.15m 59ft 6in
Max. Operating Range(+0.6m) 11.13m 36ft 6in
Max. Platform Range 10.53m 34ft 6in
Overall Length(Stowed) 8.37m 27ft 6in
Overall Length(Transport) 6.41m 21ft 8in
Overall Width(Stowed) 2.44m 8ft
Overall Height(Stowed) 2.59m 8ft 6in
Overall Height(Transport) 2.59m 8ft 6in
Platform Size(Length×Width) 1.83m×0.79m 6ft×2ft 7in
Turntable Tailswing 0.65m 2ft 2in
Ground Clearance 0.31m 1ft
Wheelbase 2.40m 7ft 10in
TurningRadius(Inside/Outside) 3m/4.73m 9ft 10in/15ft 6in
Tyres 315/55 D20 315/55 D20
Max. Up And Over Clearance 8.18m 26ft 10in
Max. Down Probing Depth 1.25m 4ft 1in
BA20CRT2 – Boom Lift
Performance Metric British
SWL 320kg 705lb
Max. Occupants 2 2
Gradeability 40% 40%
Travel Speed(Stowed) 6.0km/h 3.7mph
Travel Speed(Raised) 1.1km/h 0.7mph
Max. Working Slope X-5°/Y-5° X-5°/Y-5°
Turret Rotation 360°Continuous 360°Continuous
Platform Rotation 180° 180°
Jib Movement 132° 132°
BA20CRT2 – Boom Lift
Weight & Power Metric British
Weight 8450kg 18629lb
Diesel Engine Kubota D1105/18kW Kubota D1105/18kW
Diesel Tank 115L 08gal
Hydraulic Tank 145L 38gal

Note: Parameters with “★” are optional
