Description

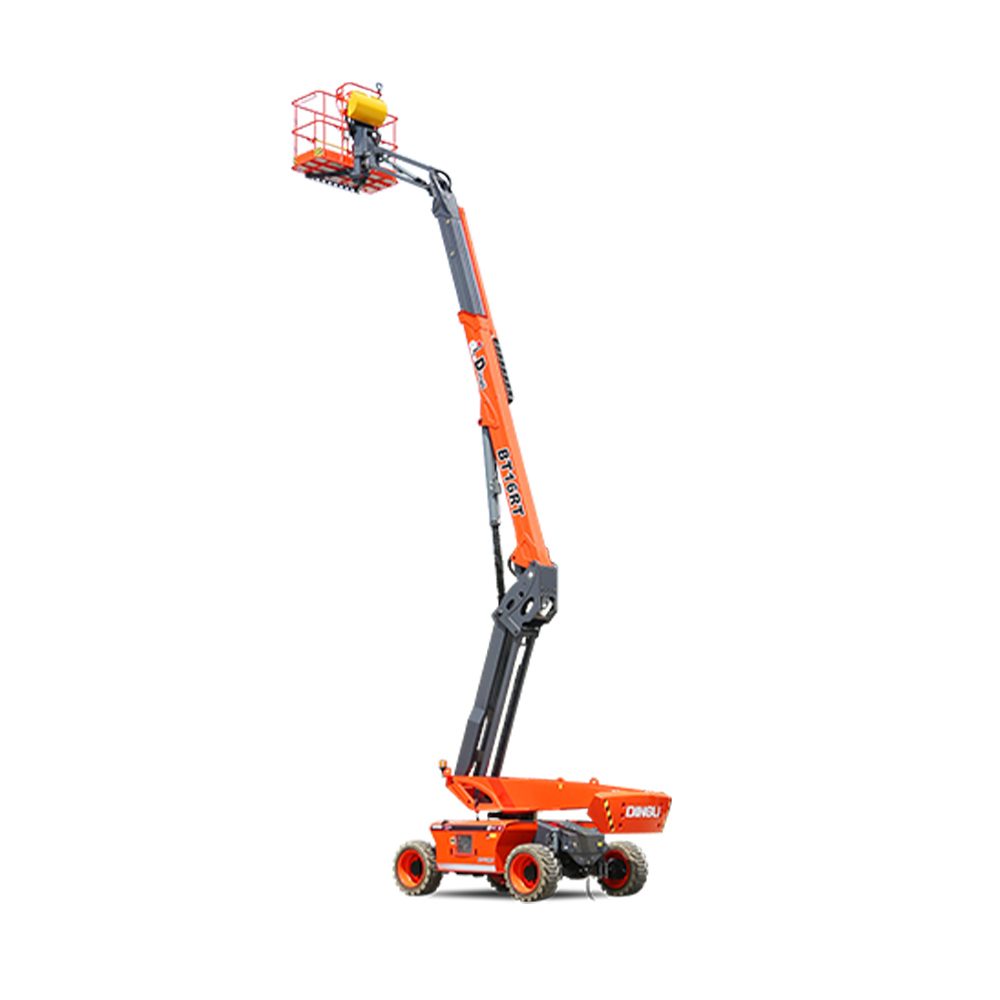

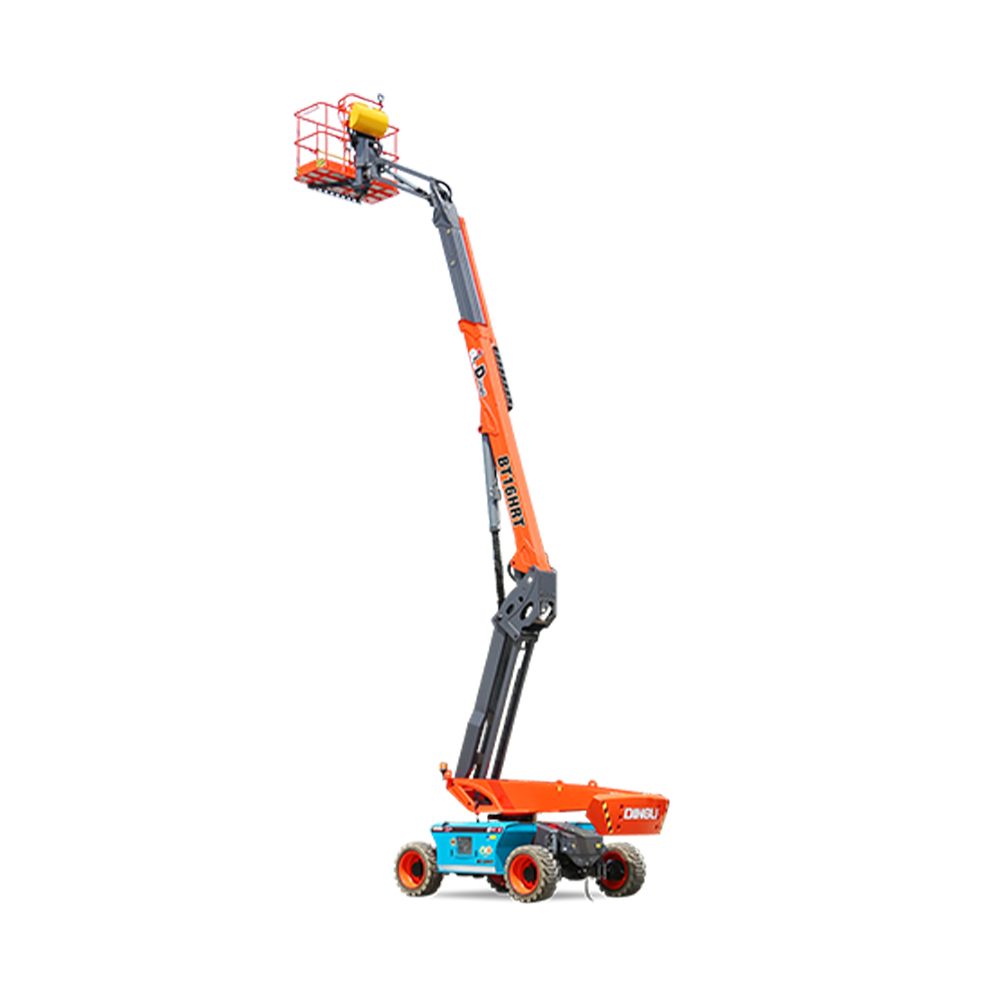

| BT16CRT2 – Boom Lift | ||
| Features | ||
| 1.50m (4ft 11in) Jib | ||
| Front Oscillating Axle | ||
| Two-Wheel Steering | ||
| Four-Wheel Drive | ||
| Self-Leveling Platform | ||
| 180° Left And Right Swing Platform | ||
| Proportional Joystick Controls | ||
| Thumb Rocker Steer | ||
| Drive Enable | ||
| AC Power Cord To Platform | ||
| Tilt Alarm | ||
| Descent Alarm | ||
| Flash | ||
| Horn | ||
| Hour Meter | ||
| Integral Integrated Special Drive Axle | ||
| For Construction Machinery | ||
| 360° Continuous Turntable Rotation | ||
| Positive Traction Four Wheel Drive | ||
| Platform Load Sense System | ||
| Fault Diagnosis System | ||
| Operator Anti-crushing Protection System | ||
| Harsh Environment Kits | ||
| 12V DC Auxiliary Power | ||
| Kubota D1105 18kW 2600rpm Diesel Engine | ||
| Hydraulic Oil Radiator | ||
| Anti-restart Engine Protection | ||
| Anti-reverse Engine Device | ||
| Auto Engine Fault Shutdown | ||
| BT16CRT2 – Boom Lift | ||
| Size | Metric | British |
| Max. Working Height | 16.33m | 53ft 7in |
| Max. Platform Height | 14.33m | 47ft |
| Max. Operating Range(+0.6m) | 9.32m | 30ft 7in |
| Max. Platform Range | 8.72m | 28ft 7in |
| Overall Length(Stowed) | 7.37m | 24ft 2in |
| Overall Length(Transport) | 5.48m | 17ft 12in |
| Overall Width | 2.44m | 8ft |
| Overall Height(Stowed) | 2.49m | 8ft 8in |
| Overall Height(Transport) | 2.68m | 8ft 9in |
| Platform Size(Length × Width) | 1.83m×0.79m | 6ft×2ft 7in |
| Turntable Tailswing | 1.18m | 3ft 10in |
| Ground Clearance | 0.31m | 1ft |
| Wheelbase | 2.40m | 7ft 10in |
| Turning Radius (Inside/Outside) | 3m/4.73m | 9ft 10in/15ft 6in |
| Tyres | 315/55D20 | 315/55D20 |
| BT16CRT2 – Boom Lift | ||
| Performance | Metric | British |
| SWL | 320kg | 705lb |
| Max. Occupants | 2 | 2 |
| Gradeability | 40% | 40% |
| Travel Speed(Stowed) | 6.0km/h | 3.7mph |
| Travel Speed(Raised) | 1.1km/h | 0.7mph |
| Max. Working Slope | X-5°/Y-5° | X-5°/Y-5° |
| Turret Rotation | 360°Continuous | 360°Continuous |
| Platform Rotation | 180° | 180° |
| Jib Movement | 132° | 132° |
| BT16CRT2 – Boom Lift | ||
| Weight & Power | Metric | British |
| Weight | 6700kg | 14770lb |
| Diesel Engine | Kubota D1105/18kW | Kubota D1105/18kW |
| Diesel Tank | 115L | 30gal |
| Hydraulic Tank | 145L | 38gal |
Note: Parameters with “★” are optional
