Description

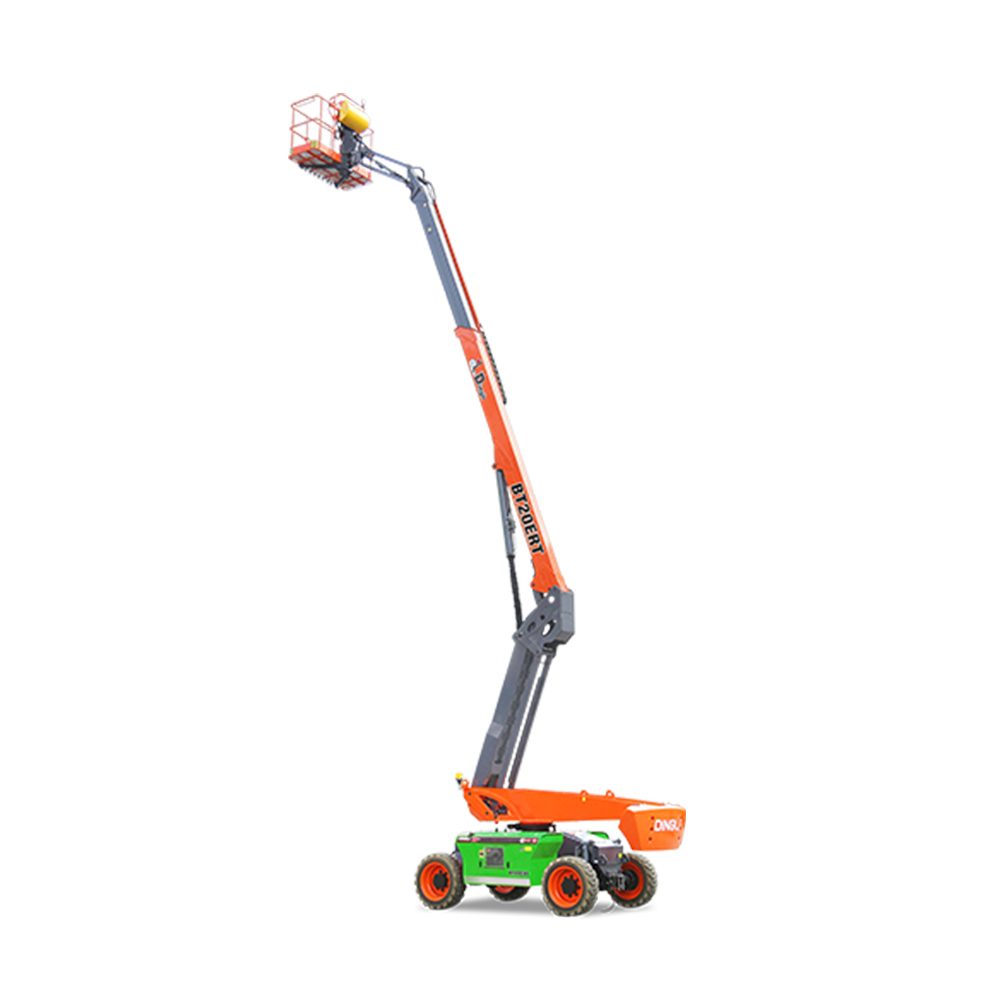

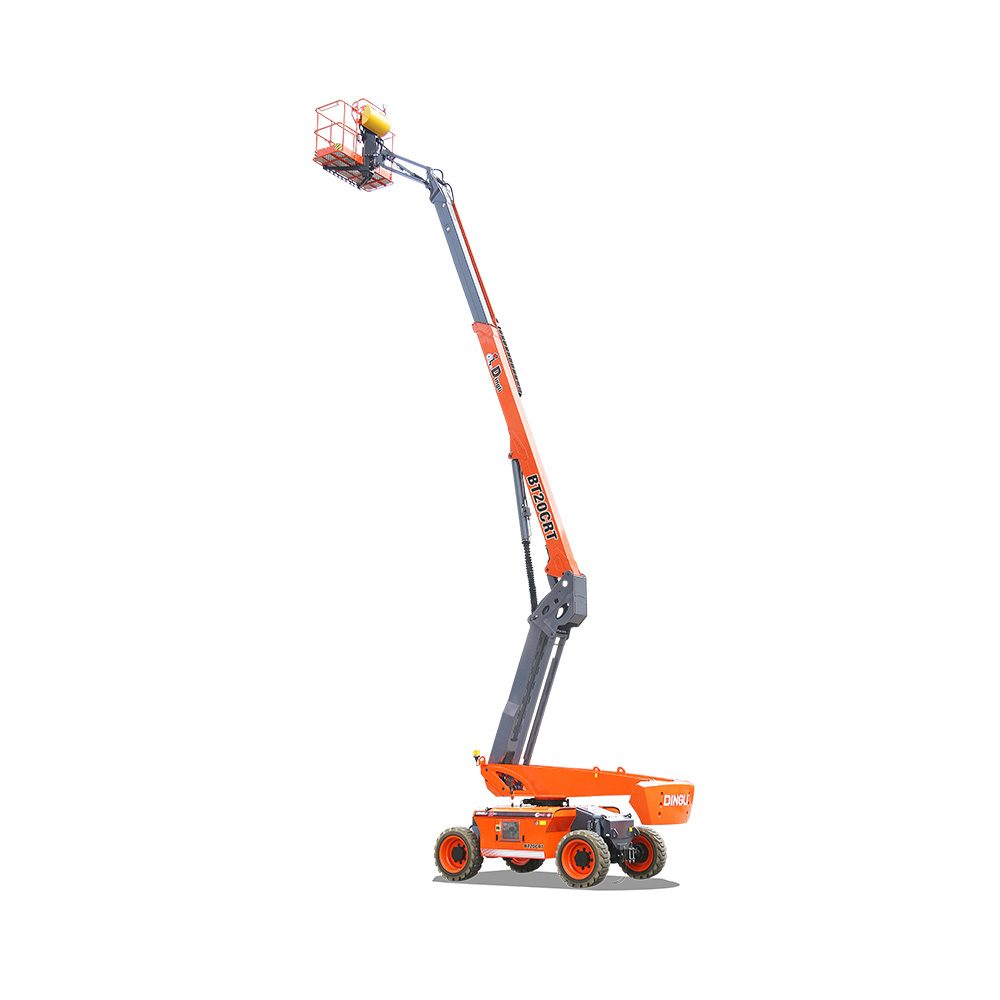

| BT20CRT2 – Boom Lift |
| Features |
| 1.50m (4ft 11in) Jib |
| Front Oscillating Axle |
| Two-Wheel Steering |
| Four-Wheel Drive |
| Self-Leveling Platform |
| 180° Left And Right Swing Platform |
| Proportional Joystick Controls |
| Thumb Rocker Steer |
| Drive Enable |
| AC Power Cord To Platform |
| Tilt Alarm |
| Descent Alarm |
| Flash |
| Horn |
| Hour Meter |
| Integral Integrated Special Drive Axle |
| For Construction Machinery |
| 360° Continuous Turntable Rotation |
| Positive Traction Four Wheel Drive |
| Platform Load Sense System |
| Fault Diagnosis System |
| Operator Anti-crushing Protection System |
| Harsh Environment Kits |
| 12V DC Auxiliary Power |
| Kubota D1105 18kW 2600rpm Diesel Engine |
| Hydraulic Oil Radiator |
| Anti-restart Engine Protection |
| Anti-reverse Engine Device |
| Auto Engine Fault Shutdown |
| BT20CRT2 – Boom Lift | ||
| Size | Metric | British |
| Max. Working Height | 20.23m | 66ft 4in |
| Max. Platform Height | 18.23m | 60ft |
| Max. Operating Range(+0.6m) | 13.36m | 44ft |
| Max. Platform Range | 12.76m | 41ft 10in |
| Overall Length(Stowed) | 9.51m | 31ft 2in |
| Overall Length(Transport) | 7.63m | 25ft |
| Overall Width(Stowed) | 2.44m | 8ft |
| Overall Height(Stowed) | 2.49m | 8ft 2in |
| Overall Height(Transport) | 2.68m | 8ft 9in |
| Platform Size (Length × Width) | 1.83m×0.79m | 6ft×2ft 7in |
| Turntable Tailswing | 1.24m | 4ft 1in |
| Ground Clearance | 0.31m | 1ft |
| Wheelbase | 2.40m | 7ft 10in |
| TurningRadius(Inside/Outside) | 3m/4.73m | 9ft 10in/15ft 6in |
| Tyres | 315/55D20 | 315/55D20 |
| BT20CRT – Boom Lift | ||
| Performance | Metric | British |
| SWL | 320kg | 705lb |
| Max. Occupants | 2 | 2 |
| Gradeability | 40% | 40% |
| Travel Speed(Stowed) | 6.0km/h | 3.7mph |
| Travel Speed(Raised) | 1.1km/h | 0.7mph |
| Max. Working Slope | X-5°/Y-5° | X-5°/Y-5° |
| Turret Rotation | 360°Continuous | 360°Continuous |
| Platform Rotation | 180° | 180° |
| Jib Movement | 132° | 132° |
| BT20CRT – Boom Lift | ||
| Weight & Power | Metric | British |
| Weight | 8150kg | 17967lb |
| Diesel Engine | Kubota D1105/18.2kW | Kubota D1105/18.2kW |
| Diesel Tank | 115L | 30gal |
| Hydraulic Tank | 145L | 38gal |
Note: Parameters with “★” are optional
