Description

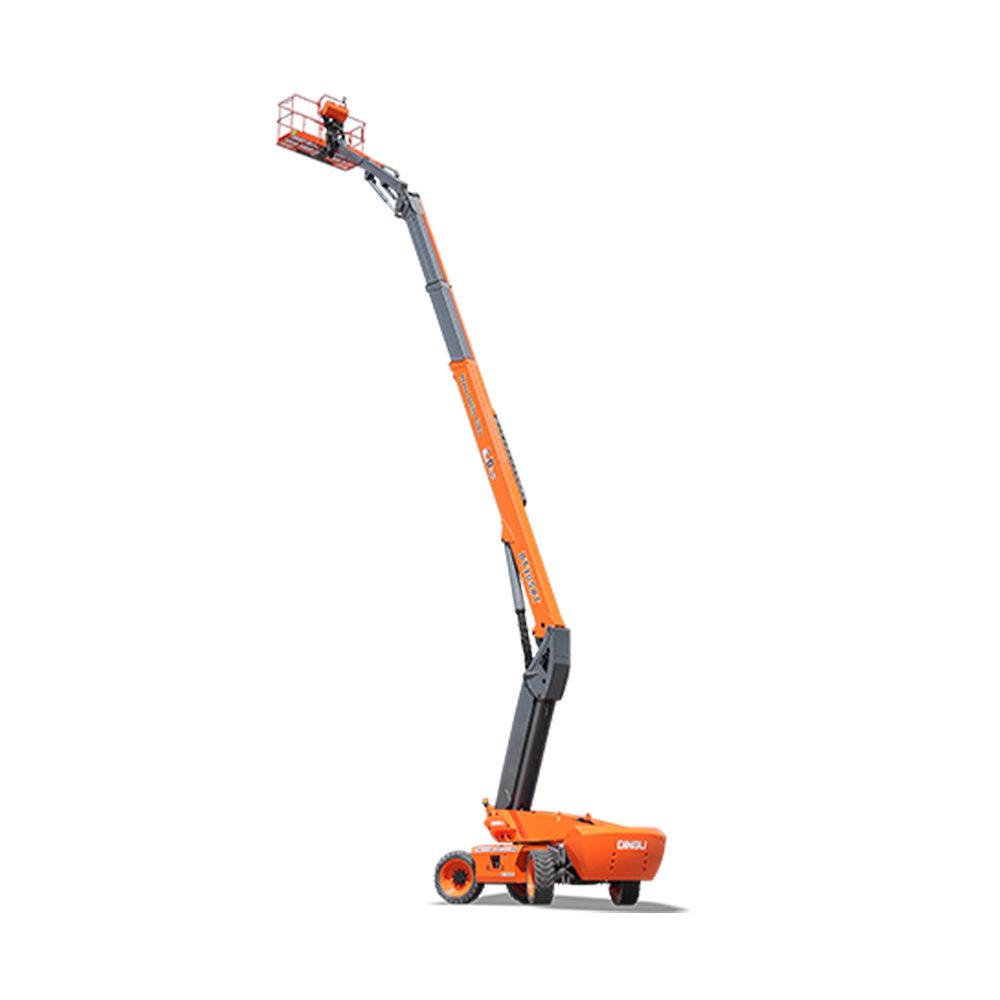

| BT30RT – Boom Lift |
| Features |
| 2.31m (7ft 7in) Jib |
| Front Oscillating Axle |
| Four-Wheel Steering |
| Four-Wheel Drive |
| Self-Leveling Platform |
| 180° Left And Right Swing Platform |
| Proportional Joystick Controls |
| Thumb Rocker Steer |
| Drive Enable |
| Ac Power Cord To Platform |
| Tilt Alarm |
| Descent Alarm |
| Flash |
| Horn |
| Hour Meter |
| Integral Integrated Special Drive Axle |
| For Construction Machinery |
| 360° Continuous Turntable Rotation |
| Positive Traction Four Wheel Drive |
| Platform Load Sense System |
| Fault Diagnosis System |
| Operator Anti-crushing Protection System |
| Harsh Environment Kits |
| 12V DC Auxiliary Power |
| Deutz D2.9 L4 55.4kW 2600rpm Diesel Engine |
| Hydraulic Oil Radiator |
| Anti-restart Engine Protection |
| Anti-reverse Engine Device |
| Auto Engine Fault Shutdown |
| BT30RT – Boom Lift | ||
| Size | Metric | British |
| Max. Working Height | 30.20m | 99ft 5in |
| Max. Platform Height | 28.20m | 92ft 6in |
| Max. Operating Range(+0.6m) | 23.00m | 75ft 6in |
| Max. Platform Range | 22.40m | 73ft 6in |
| Overall Length(Stowed) | 12.25m | 40ft 2in |
| Overall Length(Transport) | 11.96m | 39ft 3in |
| Overall Width(Stowed) | 2.50m | 8ft 2in |
| Overall Width(Transport) | 2.28m | 7ft 6in |
| Overall Height(Stowed) | 2.87m | 9ft 5in |
| Overall Height(Transport) | 2.59m | 8ft 6in |
| Platform Size(Length×Width) | 2.44m×0.91m | 8ft×3ft |
| Turntable Tailswing | 1.61m | 5ft 3in |
| Ground Clearance | 0.41m | 1ft 4in |
| Wheelbase | 2.80m | 9ft 2in |
| TurningRadius(Inside/Outside) | 1.87m/3.22m | 6ft 2in/10ft 7in |
| Tyres | 385/45-28 | 385/45-28 |
| BT30RT – Boom Lift | ||
| Performance | Metric | British |
| SWL (Unrestricted/Restricted) | 300kg/454kg | 661lb/1000lb |
| Max. Occupants | 3 | 3 |
| Gradeability | 45% | 45% |
| Travel Speed(Stowed) | 6.0km/h | 3.7mph |
| Travel Speed(Raised) | 1.1km/h | 0.7mph |
| Max. Working Slope | X-5°/Y-5° | X-5°/Y-5° |
| Turret Rotation | 360°Continuous | 360°Continuous |
| Platform Rotation | 180° | 180° |
| Jib Movement | 130° | 130° |
| BT30RT – Boom Lift | ||
| Weight & Power | Metric | British |
| Weight | 18900kg | 41667lb |
| Diesel Engine | Deutz TD2.9 L4 / 55.4kW | Deutz TD2.9 L4 / 55.4kW |
| Emergency Power System | 12V | 12V |
| Diesel Tank | 135L | 35gal |
| Hydraulic Tank | 165L | 43gal |
Note: Parameters with “★” are optional
