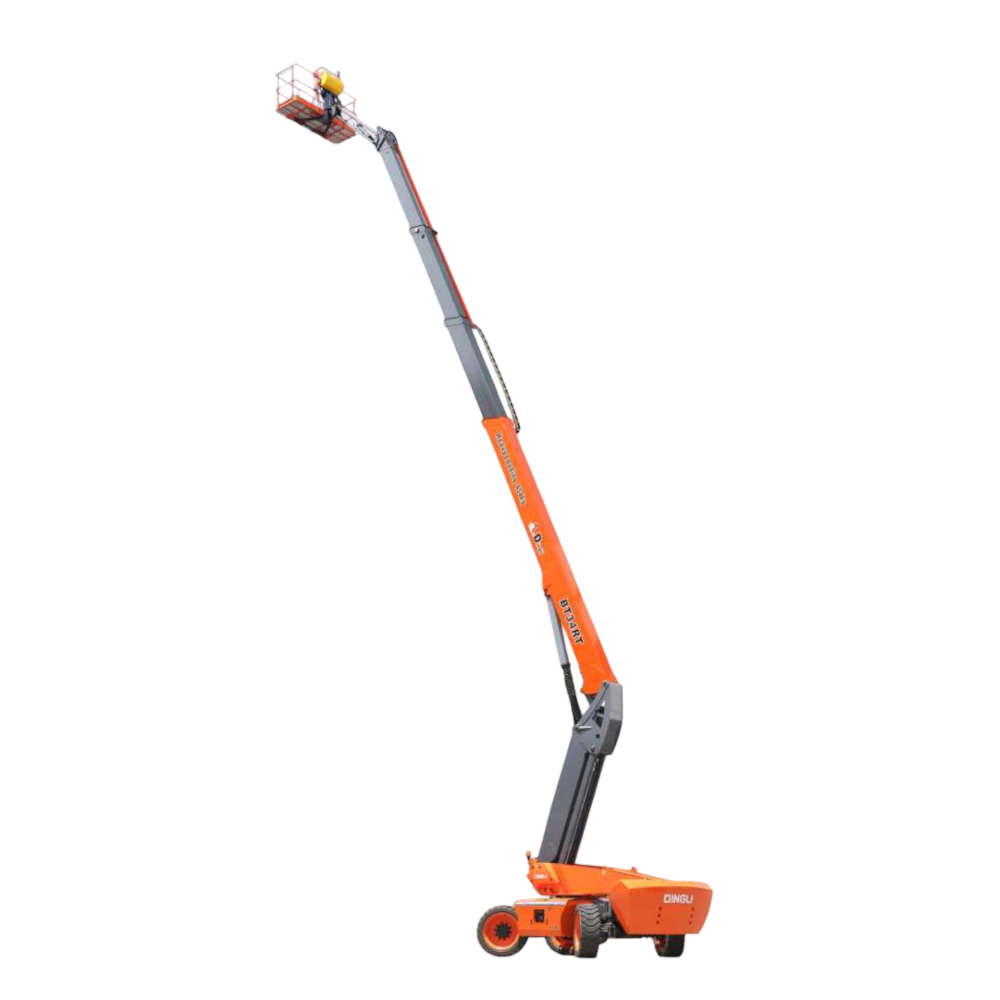

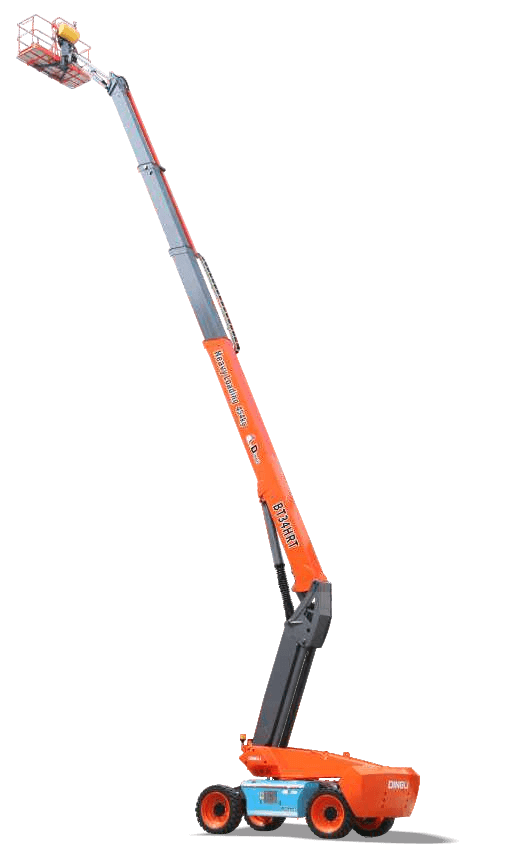

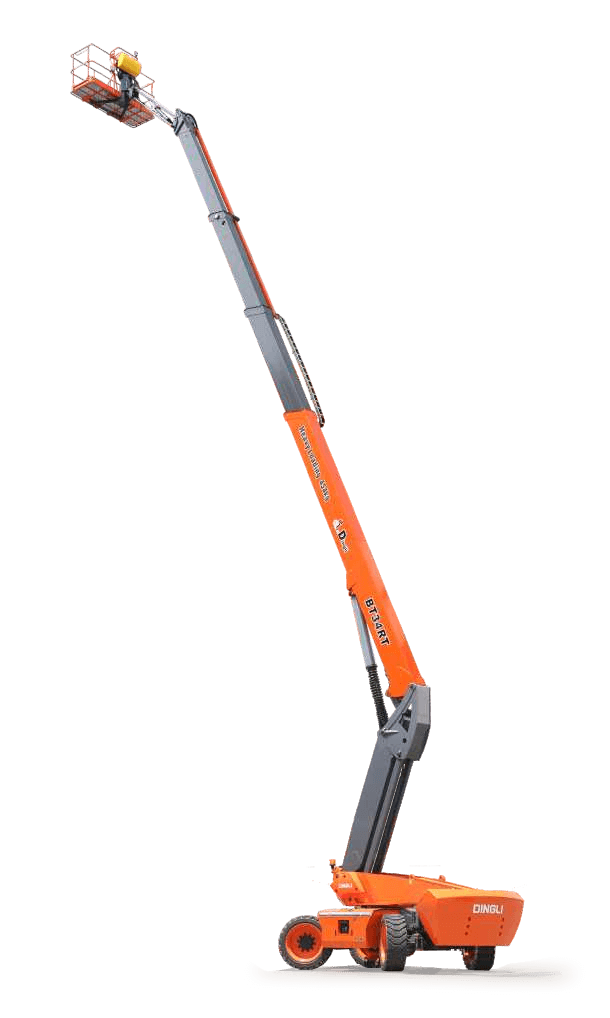

BT34RT – Telescopic Boom Lift

M Series
  • Developed by MAGNI, DINGLI’s Italian R&D center

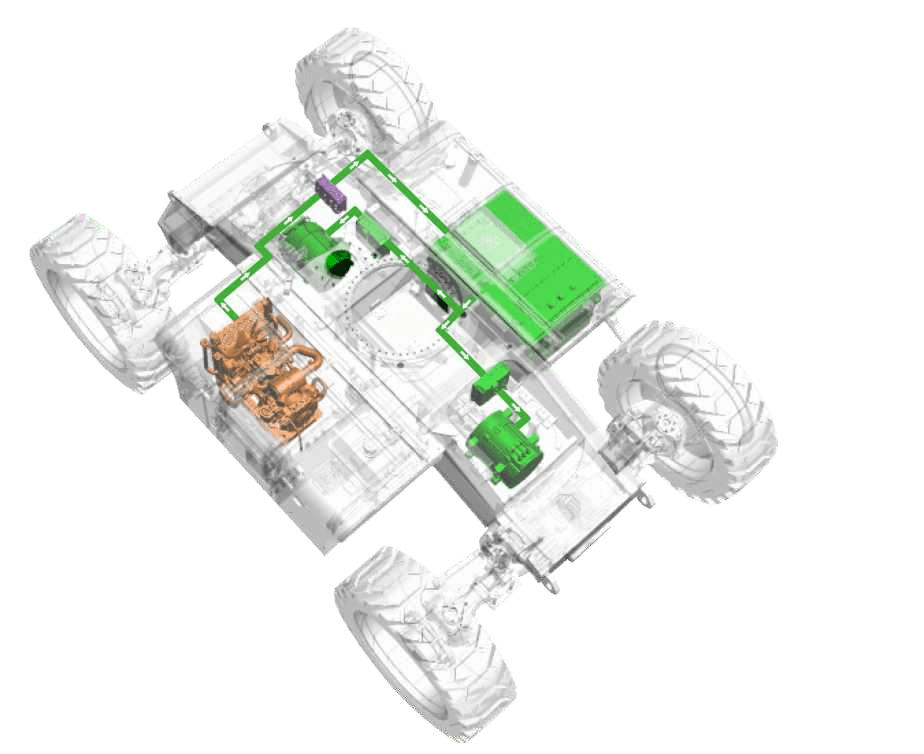

  • Modular design horizontally & vertically – 85% of components common in the full range (electric / diesel / hybrid models) developed on the same platform
  • Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock and powerful rough-terrain performance
  • Component downward design with lowered center of gravity
  • Suitable for standard container transport
  • Equipped with 55.4kw high power engine
  • Gradeability up to 45%
ADD TO QUOTE
Categories: ,

Description

BT34RT – Boom Lift
Features
2.31m(7ft 7in) Jib
Front Oscillating Axle
Four-Wheel Steering
Four-Wheel Drive
Self-Leveling Platform
180° Left And Right Swing Platform

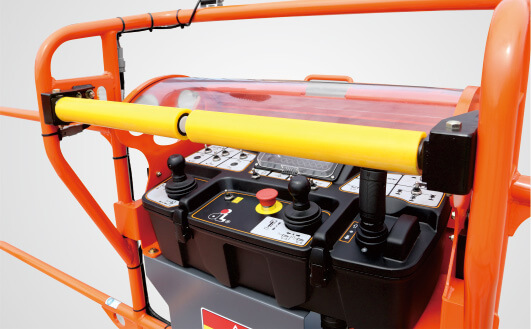

Proportional Joystick Controls
Thumb Rocker Steer
Drive Enable
Ac Power Cord To Platform
Tilt Alarm
Descent Alarm
Flash
Horn
Hour Meter
Integral Integrated Special Drive Axle
For Construction Machinery
360° Continuous Turntable Rotation
Positive Traction Four Wheel Drive
Platform Load Sense System
Fault Diagnosis System
Operator Anti-crushing Protection System
Harsh Environment Kits
12V DC Auxiliary Power
Deutz D2.9 L4 55.4kW 2600rpm Diesel Engine
Hydraulic Oil Radiator
Anti-restart Engine Protection
Anti-reverse Engine Device
Auto Engine Fault Shutdown
BT34RT – Boom Lift
Size Metric British
Max. Working Height 34.14m 112ft
Max. Platform Height 32.14m 105ft 5in
Max. Operating Range(+0.6m) 21.60m 70ft 10in
Max. Platform Range 21.00m 68ft 11in
Flatbed Transport Dimensions(L×W×H) 11.63m×2.50m×2.86m 38ft 2in×8ft 2in×9ft 4in
Standard Container Transport All Applicable All Applicable
Platform Size(Length×Width) 2.44m×0.91m 8ft×3ft
Turntable Tailswing 1.61m 5ft 3in
Ground Clearance 0.41m 1ft 4in
Wheelbase 2.80m 9ft 2in
TurningRadius(Inside/Outside) 1.87m/3.22m 6ft 2in/10ft 7in
Tyres 385/45-28 385/45-28
BT34RT – Boom Lift
Performance Metric British
SWL 300kg/454kg 661lb/1000lb

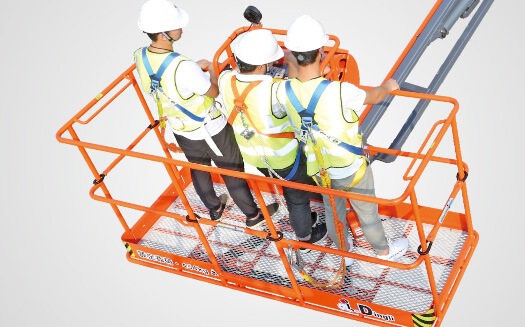

Max. Occupants 3 3
Gradeability 45% 45%
Travel Speed(Stowed) 6.0km/h 3.7mph
Travel Speed(Raised) 1.1km/h 0.7mph
Max. Working Slope X-5°/Y-5° X-5°/Y-5°
Turret Rotation 360°Continuous 360°Continuous
Platform Rotation 180° 180°
Jib Movement 135° 135°
BT34RT – Boom Lift
Weight & Power Metric British
Weight 19150kg 42219lb
Diesel Engine Deutz TD2.9 L4/55.4kW Deutz TD2.9 L4/55.4kW
Emergency Power System 12V 12V
Diesel Tank 135L 35gal
Hydraulic Tank 165L 43gal

Note: Parameters with “★” are optional
