Description

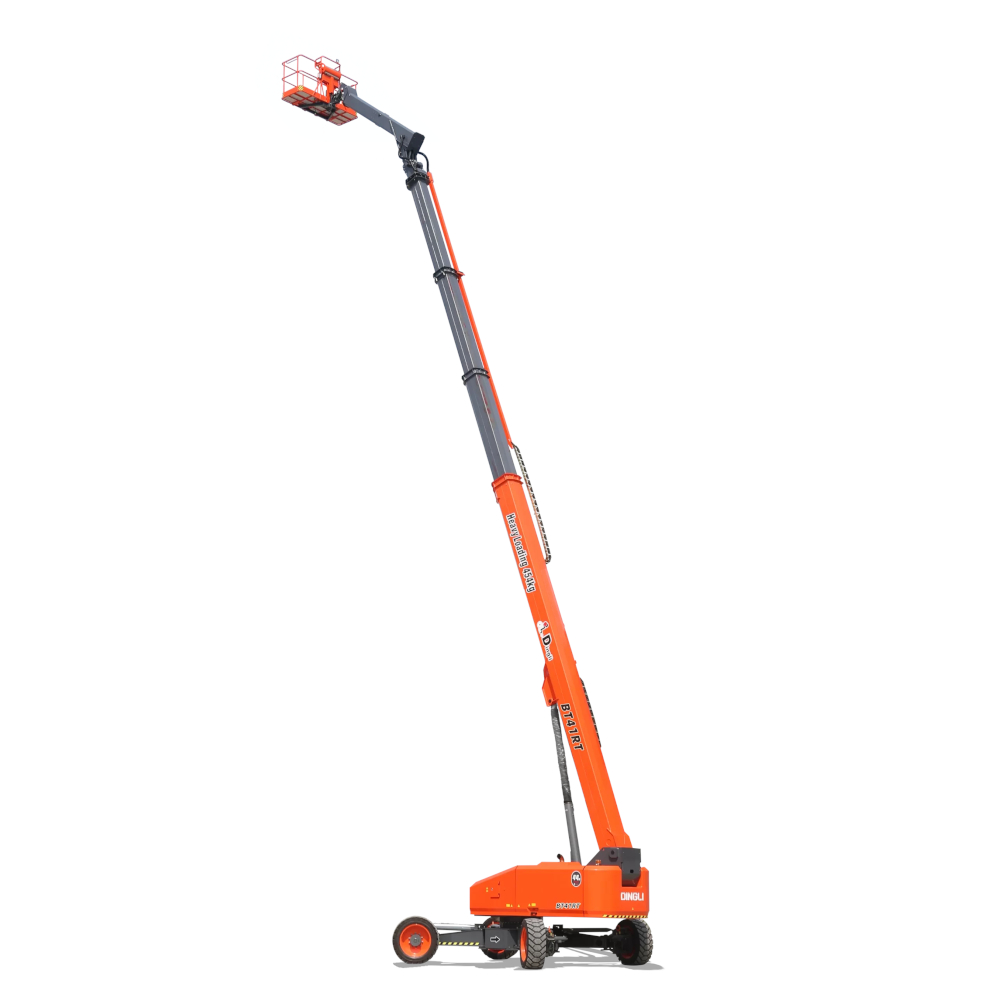

| BT41RT – Boom Lift |
| Features |
| Load Sense System |
| 12V DC Auxiliary Power |
| Hydraulic Oil Radiator |
| Harsh Environment Kits |
| Fault Diagnosis System |
| Turntable Protection Lock |
| High Stiffness Boom System |
| Fully-Opened Chassis Cover |
| Ac Power Cord To Platform |
| Descent & Movement Alarms |
| 180°Left & Right Swing Platform |
| Platform Rotation Angle Monitoring |
| Platform Bottoming Out Protection |
| Proportional Joystick Controls |
| Loose & Broken Chain Monitoring |
| Fast & Slow Speed Monitoring |
| Working Condition Monitoring |
| Engine Start & Stop Protection |
| Rexroth Hydrostatic Drive System |
| Automatic Steering Angle Matching |
| Drive Forced Shunt & Merge Function |
| Negative Pressure Brake With Detection |
| Real-Time Machine Status Display System |
| Cat.3 Safety Architecture – ISO 13849-1 |
| Operator Anti-Extrusion Protection System |
| Deutz TD2.9 L4 55.4kW 2600rpm Diesel Engine |
| 4.2m Amplitude Flexible Jib With Angle Detection |
| 360°Turntable Continuous Rotation With Inspection |
| Expandable Chassis With Proprietary Patented Design |
| Horn |
| Tilt Alarm |
| Hour Meter |
| Drive Enable |
| Flashing Beacon |
| Four-Wheel Drive |
| Four-Wheel Steering |
| In-Situ Axle Expansion |
| Self-Levelling Platform |
| BT41RT – Boom Lift | ||
| Dimension | Metric | British |
| Max. Working Height | 41.54m | 136ft 3in |
| Max. Platform Height | 39.54m | 129ft 9in |
| Max. Operating Range | 24.10m | 79ft 1in |
| Max. Platform Range | 23.50m | 77ft 1in |
| Max. Down Probing Depth | 2.00m | 6ft 7in |
| Flatbed Transport Dimensions (L×W×H) | 11.17m×2.44m×2.83m | 36ft 8in×8ft×9ft 3in |
| Standard Container Transport | All Applicable | All Applicable |
| Overall Width(Axle Expanded) | 4.17m | 13ft 8in |
| Overall Width(Axle Retracted) | 2.44m | 8ft |
| Platform Size(Length×Width) | 2.44m×0.91m | 8ft×3ft |
| Platform Height | 1.10m | 3ft 7in |
| Turntable Tailswing | 1.39m | 4ft 7in |
| Ground Clearance | 0.40m | 1ft 4in |
| Wheelbase(Axle Expanded) | 4.07m | 13ft 4in |
| Wheelbase(Axle Retracted) | 4.27m | 14ft |
| BT41RT – Boom Lift | ||
| Performance | Metric | British |
| S.W.L(Unrestricted/Restricted) | 300kg/454kg | 661lb/1000lb |
| Max. Occupants | 3 | 3 |
| Gradeability | 45% | 45% |
| Travel Speed(Stowed) | 6.0km/h | 3.73mph |
| Travel Speed(Raised) | 1.1km/h | 0.68mph |
| Max. Working Slope | 5° | 5° |
| Turret Rotation | 360°Continuous | 360°Continuous |
| Platform Rotation | 180° | 180° |
| Jib Movement | 230° | 230° |
| Main Boom Maximum Angle | 75° | 75° |
| Turning Radius(Inside/Outside) | 2.99m/5.41m | 10ft/17ft 9in |
| Tyres | 445/50-D710 | 445/50-D710 |
| BT41RT – Boom Lift | ||
| Weight & Power | Metric | British |
| Weight | 21060kg | 46429lb |
| Diesel Engine | Deutz TD2.9 L4/55.4kW | Deutz TD2.9 L4/55.4kW |
| Emergency Power System | 12V DC | 12V DC |
| Diesel Tank | 150L | 39gal |
| Hydraulic Tank | 230L | 61gal |
Note: Parameters with “★” are optional
