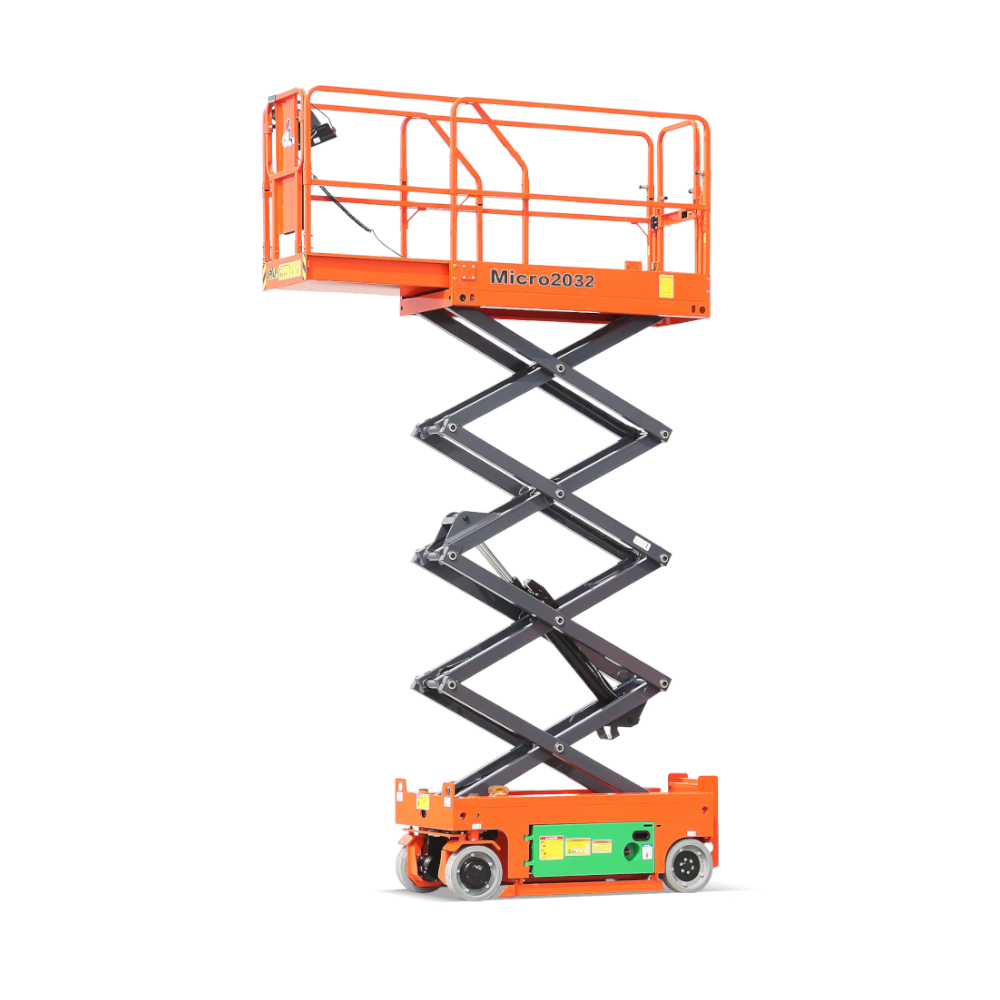

Micro2032 – Scissor lift

● Innovation+
1. World-First Compact Design – Same compact base size as a traditional 7.8m scissor lift, but delivers 8.0m working height for enhanced access capabilities
2. Superior Load Capacity – 363kg capacity provides increased versatility for personnel and equipment
3. Enhanced Manoeuvrability – Compact footprint allows access to confined areas previously impossible with traditional 8.0m scissor lifts

● Access+
4. Breakthrough Space Efficiency – Compact base dimensions provide superior access in space-constrained environments
5. Maximum Versatility – Combines extended reach with the agility of smaller models

Description

Micro2032 Scissor Lift
Features – Standard Items
Proportional Joystick Controls
Self-Locking Gates
Charging Indicator
Drivable At Full Height
Non-Marking Tyres
4×2 Drive
Four-Wheel Braking
Emergency Descent System
Tubing Explosion-Proof System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
Micro2032 Scissor Lift
Size Metric British
Max. Working Height 8.00m 26ft 3in
Max. Platform Height 6.00m 19ft 8in
Overall Length 1.88m 6ft 2in
Overall Width 0.82m 2ft 8in
Overall Height (Rails Up) 2.04m 6ft 8in
Overall Height (Rails Down) 1.71m 5ft 7in
Platform Size (Length ×Width) 1.725m×0.74m 5ft 8in×2ft 5in
Platform Extension Size 0.90m 2ft 11in
Ground Clearance (Stowed/Raised) 0.09m/0.016m 4in/1in
Wheelbase 1.4m 4ft 7in
Turning Radius (Inside/Outside) 0m/1.7m 0in/5ft 7in
Tyres φ323×125mm φ323×125mm
Micro2032 Scissor Lift
Performance Metric British
S.W.L 363kg 800lb
S.W.L On Extension 113kg 249lb
Max. Occupants (Indoor/Outdoor) 2/1 2/1
Gradeability 25% 25%
Travel Speed (Stowed) 4.5km/h 2.80mph
Travel Speed (Raised) 0.4km/h 0.25mph
Max. Working Slope X-1.5°/Y-3° X-1.5°/Y-3°
Up/Down Speed 30/30sec 30/30sec
Micro2032 Scissor Lift
Weight & Power Metric British
Overall Weight 1860kg 4101lb
Hydraulic Tank 6.5L 1.6gal
Battery 24V/210Ah 24V/210Ah
Charger 24V/30A 24V/30A
Driving Motor 2×15VAC/0.5kW 2×15VAC/0.5kW
Lifting Motor 15VAC/3.50kW 15VAC/3.50kW
Micro2032 Scissor Lift
