Description

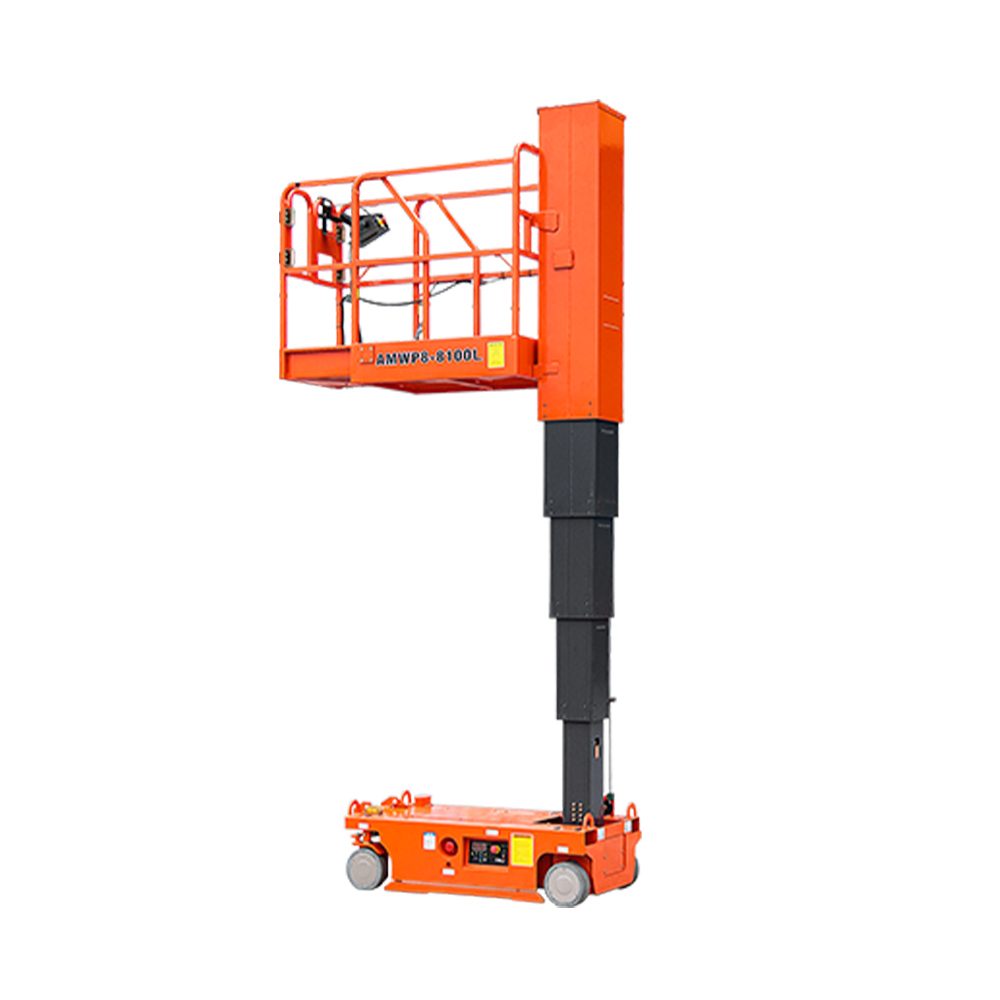

| MV050-ACE – Mast Lift |
| Features |
| Proportional Controls |
| Self-lock Gate On Platform |
| Extended Platform |
| Drivable At Full Height |
| Non Marking Tyre |
| 2WD |
| Automatic Brake System |
| Emergency Lowering System |
| Emergency Stop Button |
| Onboard Diagnostic System |
| Tilt Sensor With Alarm |
| All Motion Alarm |
| Hour Meter |
| Transport Tie Hole |
| Charger Protection |
| Flashing Beacon |
| Automatic Pothole Protection |
| MV050-ACE – Mast Lift | ||
| Size | Metric | British |
| Max. Working Height | 6.7m | 22ft |
| Max. Platform Height | 4.7m | 15ft 5in |
| Overall Length | 1.45m | 4ft 9in |
| Overall Width | 0.76m | 2ft 6in |
| Overall Height | 1.99m | 6ft 6in |
| Platform Size(Length×Width) | 1×0.76m | 3ft 3in×2ft 6in |
| Platform Extension Size | 0.5m | 1ft 8in |
| Ground Clearance(Stowed/Raised) | 0.06m/0.014m | 2in/1in |
| Wheelbase | 1.21m | 4ft |
| Turning Radius(Inside/Outside) | 0.6m/1.8m | 2ft/5ft 11in |
| Tyres | Φ230×80mm | Φ230×80mm |
| MV050-ACE – Mast Lift | ||
| Performance | Metric | British |
| SWL | 200kg | 440lb |
| SWL On Extension | 113kg | 249lb |
| Max. Occupants | 1 | 1 |
| Gradeability | 25% | 25% |
| Travel Speed(Stowed) | 3.6km/h | 2.2mph |
| Travel Speed(Raised) | 0.5km/h | 0.31mph |
| Max. Working Slope | X-1.5° Y-3° | X-1.5° Y-3° |
| Up/Down Speed | 28s/28s | 28s/28s |
| MV050-ACE – Mast Lift | ||
| Weight & Power | Metric | British |
| Overall Weight | 990kg | 2182lb |
| Battery | 2×12V 115Ah | 2×12V 115Ah |
| Charger | 24V 15A | 24V 15A |
| Driving Motor | 2×24V 0.68kw | 2×24V 0.68kw |
| Lifting Motor | 24V 2.2kw | 24V 2.2kw |
| MV050-ACE – Mast Lift |
Note: Parameters with “★” are optional
