Description

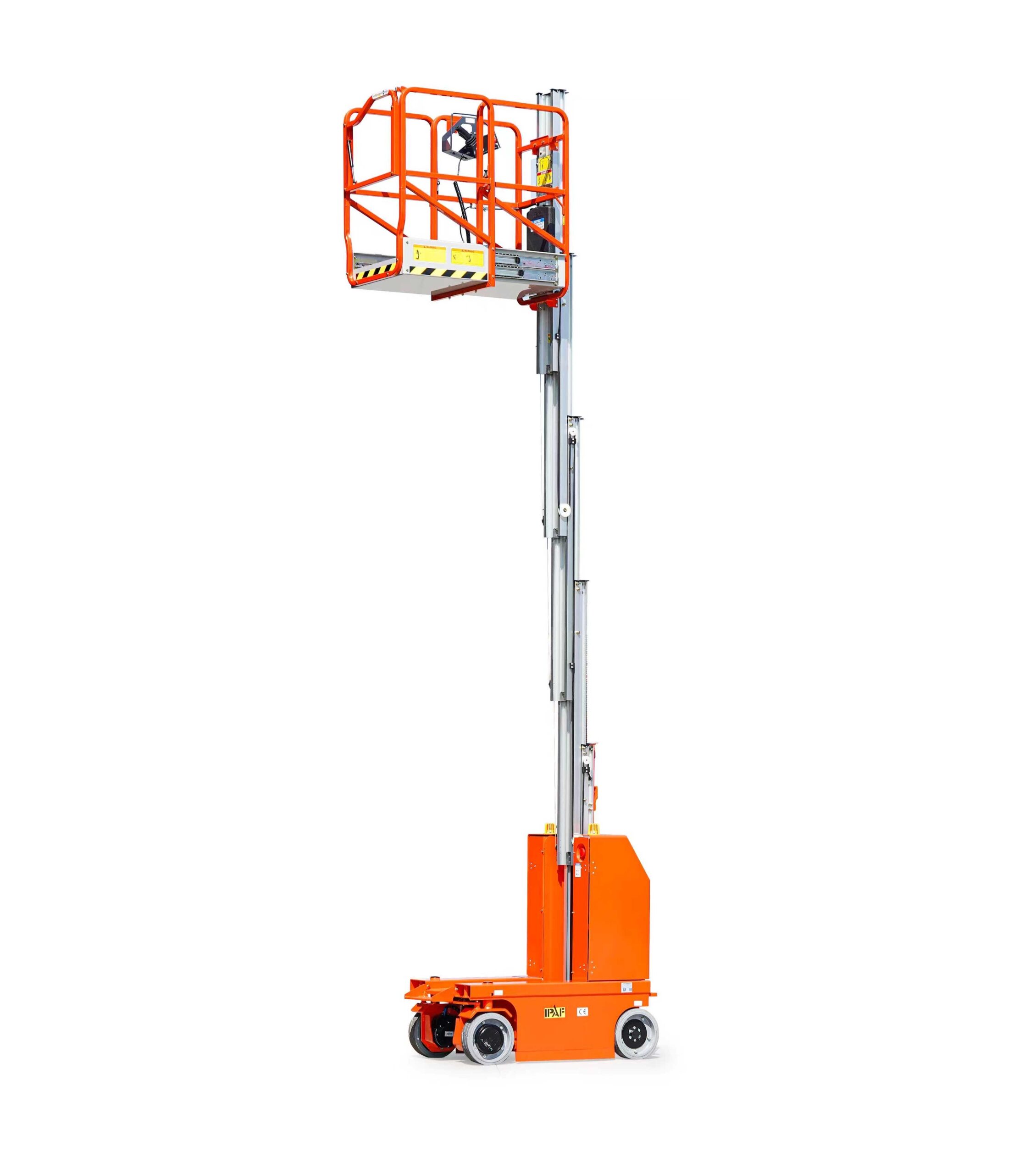

| MV060-RS – Mast Lift |
| Features |
| Cylinder Holding Valve |
| Emergency Stop Button |
| Two Controllers Operation |
| Emergency Lowering System |
| Leveling Sensor |
| Forklift Pockets |
| All Motion Alarm |
| Transport Tie Hole |
| Battery Charge Indicator |
| Electric Limit Switch |
| Automatic Pothole Protection |
| Drivable At Full Height |
| Overload Sensor With Alarm |
| Onboard Diagnostic System |
| Flashing Beacon |
| MV060-RS – Mast Lift | ||
| Size | Metric | British |
| Max. Working Height | 8.00m | 26ft 3in |
| Max. Platform Height | 6.00m | 19ft 8in |
| Overall Length | 1.39m | 4ft 7in |
| Overall Width | 0.80m | 2ft 8in |
| Overall Height | 1.99m | 6ft 6in |
| Platform Size(Length×Width) | 0.73m×0.75m | 2ft 4.7in×2ft 6in |
| Platform Extension Size | 0.53m | 1ft 9in |
| Ground Clearance(Stowed/Raised) | 0.06m/0.019m | 2in/1in |
| Wheelbase | 1.07m | 3ft 6in |
| Turning Radius(Inside/Outside) | 0/1.55m | 0/5ft 1in |
| Tyres | Φ323×100mm | Φ1ft 1in×4in |
| MV060-RS – Mast Lift | ||
| Performance | Metric | British |
| SWL | 159kg | 350lb |
| Max. Occupants | 1 | 1 |
| Gradeability | 25% | 25% |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Max. Working Slope | X-1.5° Y-3° | X-1.5° Y-3° |
| Up/Down Speed | 23/25sec | 23/25sec |
| MV060-RS – Mast Lift | ||
| Weight & Power | Metric | British |
| Overall Weight | 1285kg | 2832lb |
| Battery | 2×12V/115Ah | 2×12V/115Ah |
| Charger | 24V 15A | 24V 15A |
| Driving Motor | 2×24VDC/1kW | 2×24VDC/1kW |
| Lifting Motor | 24VDC/2kW | 24VDC/2kW |
| MV060-RS – Mast Lift |
Note: Parameters with “★” are optional
