Description

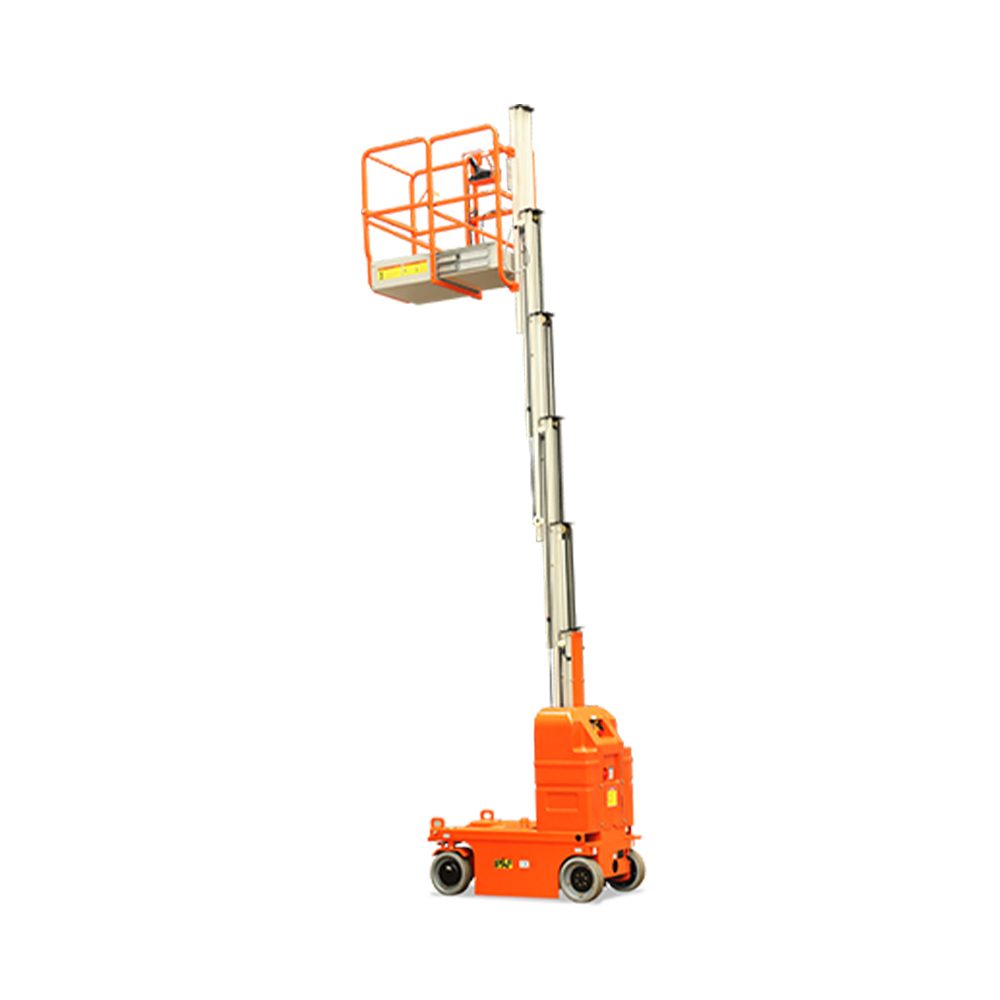

| MV075-RS – Mast Lift |
| Features |
| Cylinder Holding Valve |
| Emergency Stop Button |
| Two Controllers Operation |
| Emergency Lowering System |
| Leveling Sensor |
| Forklift Pockets |
| All Motion Alarm |
| Transport Tie Hole |
| Battery Charge Indicator |
| Electric Limit Switch |
| Automatic Pothole Protection |
| Drivable At Full Height |
| Overload Sensor With Alarm |
| Onboard Diagnostic System |
| Flashing Beacon |
| MV075-RS – Mast Lift | ||
| Size | Metric | British |
| Max. Working Height | 9.50m | 31ft 2in |
| Max. Platform Height | 7.50m | 24ft 7in |
| Overall Length | 1.44m | 4ft 9in |
| Overall Width | 0.80m | 2ft 8in |
| Overall Height | 1.99m | 6ft 6in |
| Platform Size(Length×Width) | 0.73m×0.75m | 2ft 5in×2ft 6in |
| Platform Extension Size | 0.53m | 1ft 9in |
| Ground Clearance(Stowed/Raised) | 0.06m/0.019m | 2in/1in |
| Wheelbase | 1.12m | 3ft 8in |
| Turning Radius(Inside/Outside) | 0/1.60m | 0/5ft 3in |
| Tyres | Φ323×100mm | Φ1ft 1in×4in |
| MV075-RS – Mast Lift | ||
| SWL | 136kg | 299lb |
| Max. Occupants | 1 | 1 |
| Gradeability | 25% | 25% |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Max. Working Slope | X-1.5° Y-3° | X-1.5° Y-3° |
| Up/Down Speed | 29/32sec | 29/32sec |
| MV075-RS – Mast Lift | ||
| Weight & Power | Metric | British |
| Overall Weight | 1535kg | 3384lb |
| Battery | 2×12V/115Ah | 2×12V/115Ah |
| Charger | 24V/15A | 24V/15A |
| Driving Motor | 2×24VDC/1kW | 2×24VDC/1kW |
| Travel Speed(Raised) | 0.5km/h | 0.5km/h |
| Lifting Motor | 24VDC/2kW | 24V 2.2kw |
| MV075-RS – Mast Lift |
Note: Parameters with “★” are optional
