Description

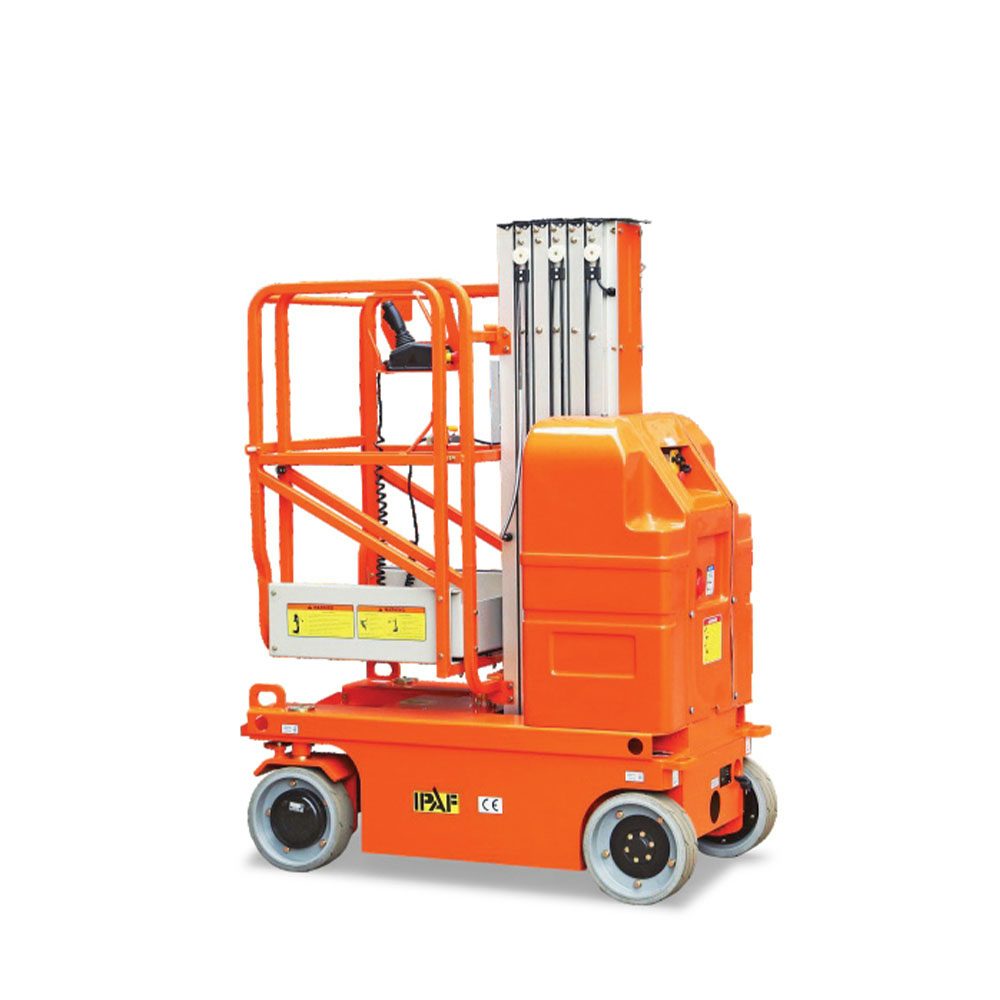

| MVP075E – Mast Lift |
| Features |
| Self-Locking Gates |
| Emergency Descent System |
| Tubing Explosion-Proof System |
| Motion Alarm |
| Charging Indicator(DC type) |
| Charging Protection System(DC type) |
| Flashing Beacon |
| Lanyard Attachment Point |
| Tie-Down And Lifting Points |
| Emergency Stop Button |
| MVP075E – Mast Lift | ||
| Size | Metric | British |
| Max. Working Height | 9.50m | 31ft 2in |
| Max. Platform Height | 7.50m | 24ft 7in |
| Overall Length | 1.30m | 4ft 3in |
| Overall Width | 0.75m | 2ft 6in |
| Overall Height | 1.99m | 6ft 6in |
| Outrigger Footprint(Length /Width ) | 1.70m/1.86m | 5ft 7in/6ft 1in |
| Platform Size(Length×Width) | 0.70m×0.60m | 2ft 4in×2ft |
| Ground Clearance | 0.055m | 2in |
| Tyres(Front) | 0.20m | 8in |
| Tyres(Back) | 0.13m | 5in |
| MVP075E – Mast Lift | ||
| Performance | Metric | British |
| SWL | 150kg | 330lb |
| Max. Occupants | 1 | 1 |
| Up/Down Speed | 28/18sec | 28/18sec |
| MVP075E – Mast Lift | ||
| Weight & Power | Metric | British |
| Weight – AC | 430kg | 947lb |
| Weight – DC | 453kg | 998lb |
| Battery | 12V/85Ah | 12V/85Ah |
| Charger | 12V/15A | 12V/15A |
| Lifting Motor – AC | 220VAC/1.5kW | 220VAC/1.5kW |
| Lifting Motor – CC | 12VDC/1.5kW | 12VDC/1.5kW |
| MVP075E – Mast Lift |
Note: Parameters with “★” are optional
