Description

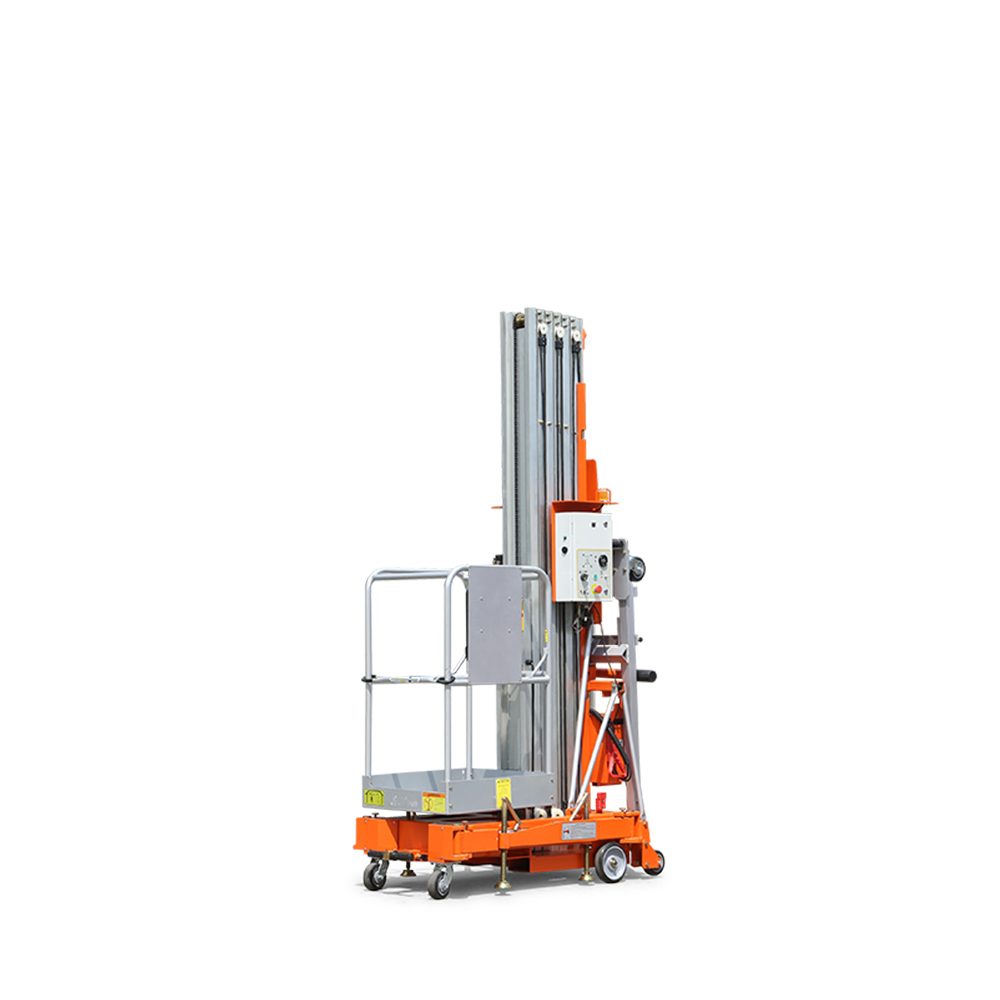

| MVP120E – Mast Lift |
| Features |
| Self-Locking Gates |
| Emergency Descent System |
| Tubing Explosion-Proof System |
| Motion Alarm |
| Charging Indicator(DC type) |
| Charging Protection System(DC type) |
| Flashing Beacon |
| Lanyard Attachment Point |
| Tie-Down And Lifting Points |
| Emergency Stop Button |
| MVP120E – Mast Lift | ||
| Size | Metric | British |
| Max. Working Height | 14.00m | 45ft 11in |
| Max. Platform Height | 12.00m | 39ft 4in |
| Overall Length(Stowed) | 1.53m | 5ft |
| Overall Length(Tilted Back) | 3.04m | 10ft |
| Overall Width | 0.75m | 2ft 6in |
| Overall Height(Stowed) | 2.77m | 9ft 1in |
| Overall Height(Tilted Back) | 1.95m | 6ft 5in |
| Outrigger Footprint(Length /Width ) | 2.08m/2.15m | 6ft 10in/7ft 1in |
| Platform Size(Length×Width) | 0.70m×0.60m | 2ft 4in×2ft |
| Ground Clearance | 0.055m | 2in |
| Tyres(Front) | 0.20m | 8in |
| Tyres(Back) | 0.13m | 5in |
| MVP120E – Mast Lift | ||
| Performance | Metric | British |
| SWL | 136kg | 299lb |
| Max. Occupants | 1 | 1 |
| Up/Down Speed | 45/29sec | 45/29sec |
| MVP120E – Mast Lift | ||
| Weight & Power | Metric | British |
| Weight – AC | 559kg | 1232lb |
| Weight – DC | 588kg | 1296lb |
| Battery | 12V/85Ah | 12V/85Ah |
| Charger | 12V/15A | 12V/15A |
| Lifting Motor – AC | 220VAC/1.5kW | 220VAC/1.5kW |
| Lifting Motor – CC | 12VDC/1.5kW | 12VDC/1.5kW |
| MVP120E – Mast Lift |
Note: Parameters with “★” are optional
