Description

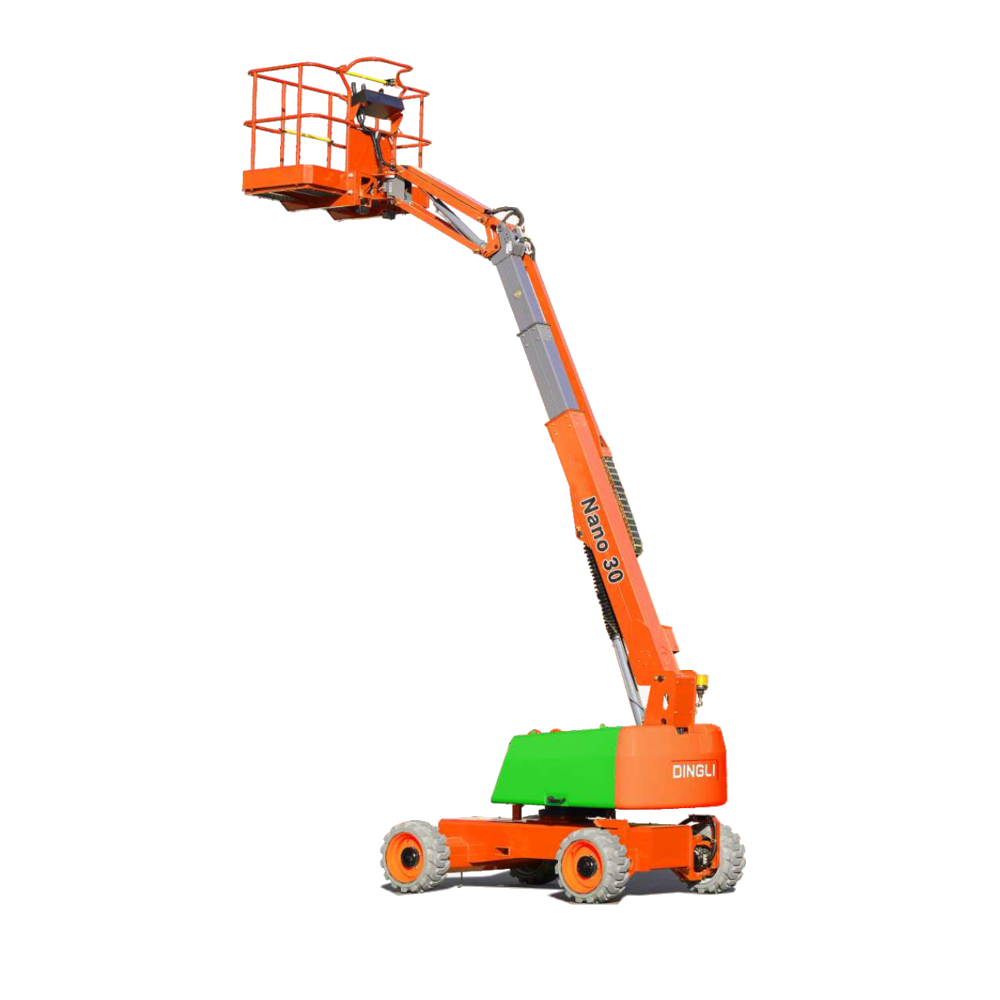

| Nano30 Telescopic Boom Lift |
| Features |
| Steering in Place |
| Lateral Movement |
| Front Wheel Steering |
| Power to Platform |
| Self-Leveling Platform |
| Full Drive Height |
| Triple-Safety Controller |
| Fully Proportional Multi-Function Controls |
| Emergency Shut-Off on Platform & Chassis |
| Auxiliary Power Unit |
| Multi-Axis Tilt Sensor |
| Overload Protection System |
| Tilt Alarm and Horn |
| Automotive Horn |
| Horn |
| Flashing Beacon (Continuous) |
| Hour Meter |
| Machine Tie-Downs and Lifting Lugs |
| Lanyard Attachments |
| Foam-Filled Tyres |
| On-Board Diagnostics |
| Nano30 Telescopic Boom Lift | ||
| Dimension | Metric | British |
| Max. Working Height (+2m) | 11.15m | 36ft 7in |
| Max. Platform Height | 9.15m | 30ft |
| Max. Operating Range (+0.6m) | 6.76m | 22ft 2in |
| Max. Platform Range | 6.16m | 20ft 2in |
| Platform Size (Length ×Width) | 1.83×0.90m | 6ft×2ft 11in |
| Flatbed Transport Dimensions (L×W×H) | 5.34×2.00×2.00m | 17ft 6in×6ft 7in×6ft 7in |
| Wheelbase | 2.00m | 6ft 7in |
| Ground Clearance | 0.18m | 7in |
| Turntable Tailswing | 0.48m | 1ft 7in |
| Tyres | 26×12-16.5 | 26×12-16.5 |
| Nano30 Telescopic Boom Lift | ||
| Performance | Metric | British |
| S.W.L | 272kg | 600lb |
| Max. Occupants | 2 | 2 |
| Platform Rotation (Right/Left) | 80°/80° | 80°/80° |
| Jib Movement | -70°~+70° | -70°~+70° |
| Jib Length | 1.20m | 3ft 11in |
| Telescopic Boom Amplitude Angle | 5°~+75° | 5°~+75° |
| Turret Rotation | 345°Discrete | 345°Discrete |
| Travel Speed (Stowed) | ≯6.0km/h | ≯3.7mph |
| Travel Speed (Raised) | ≯1.1km/h | ≯0.7mph |
| Gradeability | 40% | 40% |
| Max. Chassis Angle | 5°/5° | 5°/5° |
| Turning Radius (Inside/Outside) | 2.50/3.86m | 8ft 2in/12ft 8in |
| Nano30 Telescopic Boom Lift | ||
| Weight & Power | Metric | British |
| Overall Weight | 3400kg | 7496lb |
| Lead-Acid Maintenance-Free Battery | 220AH/8×6V | 220AH/8×6V |
| Charger | 48V/35A | 48V/35A |
| Driving Motor | 4×32VAC/2kW | 4×32VAC/2kW |
| Lifting Motor | 30VAC/5.0kW | 30VAC/5.0kW |
| Hydraulic Tank | 30L | 7gal |
