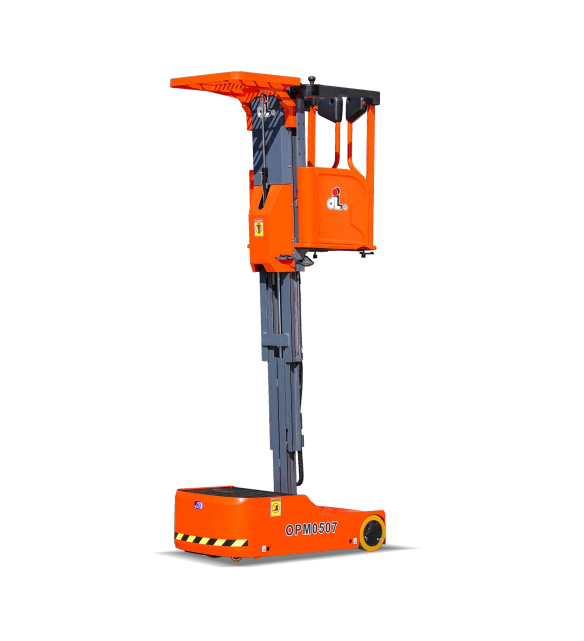

OPM0507 – Stock Picker

Oil Free & All Electric Stock Picker

Oil free design provides energy savings and environmental protection
No noise, zero emissions, no pollution, no risk of hydraulic oil leaks
Compact with a small turning radius for operating in tight spaces/down narrow isles
Multi-stage loading platform configured for safe material handling

Description

OPM0507 – Stock Picker

Features

Proportional Control

Full Height Drive

Non-marking Tyres

Automatic Brake System

E-Stop Button

Fault Diagnosis System

Motion Alarm

Horn

Hour Meter

Charging Protection System

Beacon

Gravity Sensing Protection in Platform

Interlocking Gates

Floor Sensor

Hand Sensor

OPM0507 – Stock Picker
Size	Metric	British
Max. Working Height	4.99m	16ft 4in
Max. Platform Height	2.99m	9ft 10in
Lifting Height of Platform Tray	3.60m	11ft 10in
Overall Width	0.80m	2ft 7in
Overall Height	1.40m	4ft 8in
Overall Length	1.44m	4ft 9in
Ground Clearance	0.04m	2in
Wheelbase	1.10m	3ft 7in
Turning Radius	1.26m	4ft 2in
Front Wheel (diameter x width)	Φ210×70mm	Φ210×70mm
Rear Wheels (diameter x width)	Φ250×100mm	Φ250×100mm

OPM0507 – Stock Picker
Performance	Metric	British
Rated Load (Platform Tray/Chassis Deck/Platform)	(90/110/136)kg	(199/243/300)lb
Gradeability	8%	8%
Travel Speed (stowed)	6.5km/h	4.03mph
Travel Speed(0.5-1m)	4.5km/h	2.8mph
Travel Speed (1-2m)	3.5km/h	2.2mph
Travel Speed (2-3m)	2.0km/h	1.2mph
Up/Down Speed	11s/15s	11s/15s
Platform Tray Up/Down Speed	11s/14s	11s/14s
