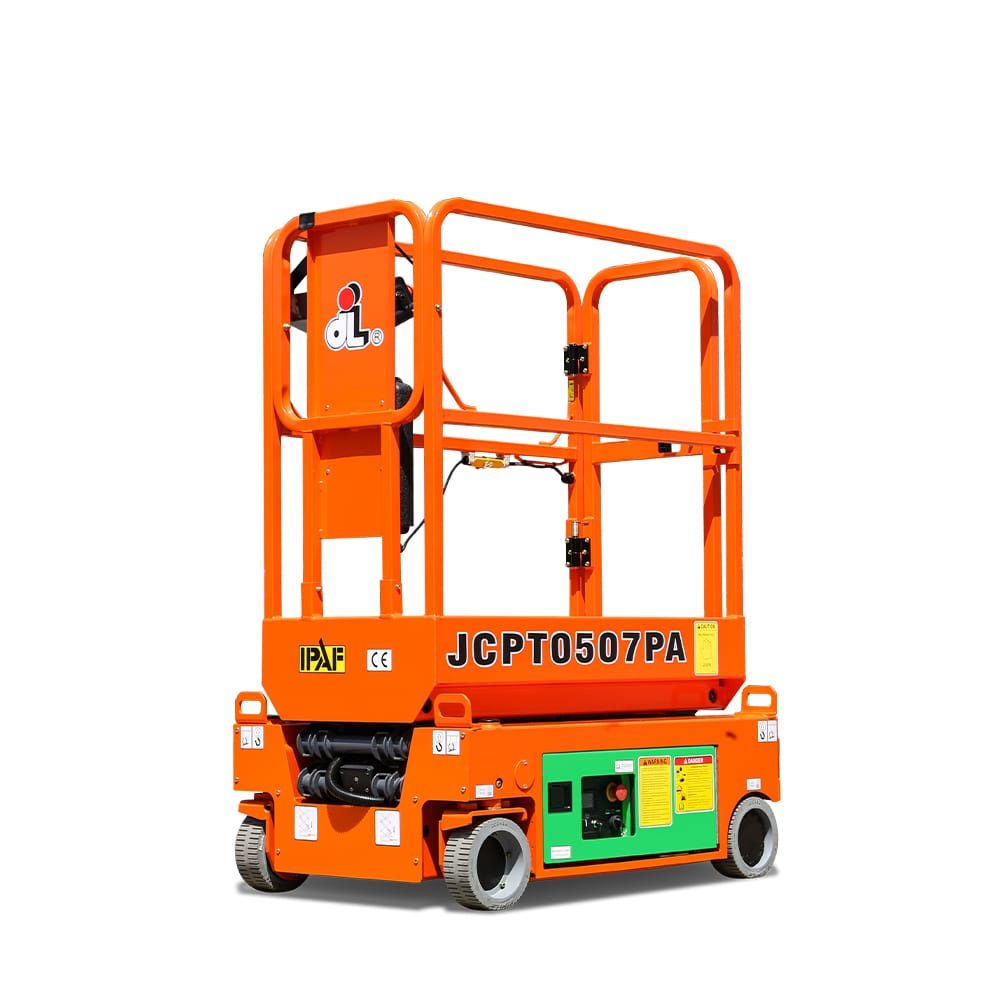

S03-PACE – Scissor Lift

Mini Oil Free Scissor

  • Low energy consumption – 30% energy saving compared with the traditional hydraulic system.
  • Safe – higher levels of water and dust resistance, with built-in position sensors & real-time data monitoring.
  • Easy maintenance – no hydraulic system & equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.
  • More comfortable – full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of traditional hydraulic systems, providing a better user experience.
  • More environmentally friendly – operational noise is lower than traditional hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.
ADD TO QUOTE
Categories: , Tags: ,

Description

S03-PACE – Scissor Lift
Features
Proportional Joystick Controls
Self-Locking Gates
Drivable At Full Height
Non-Marking Tyres
Two-Wheel Drive
Two-Wheel Steering
Automatic Braking System
Emergency Descent System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
Charging Protection System
Flashing LED Beacon
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
S03-PACE – Scissor Lift
Size Metric British
Max. Working Height 5.05m 16ft 7in
Max. Platform Height 3.05m 10ft
Overall Length 1.16m 3ft 10in
Overall Width 0.77m 2ft 6in
Overall Height 1.60m 5ft 3in
Platform Size(Length×Width) 1.16m×0.565m 3ft 10in×1ft 10in
Ground Clearance(Stower/Raised) 0.06m/0.016m 2in/1in
Wheelbase 0.95m 3ft 1in
TurningRadius(Inside/Outside) 0.45m/1.20m 1ft 6in/3ft 11in
Tyres φ200×80mm φ200×80mm
S03-PACE – Scissor Lift
Performance Metric British
SWL 230kg 507lb
Max. Occupants 1 1
Gradeability 25% 25%
Travel Speed(Stowed) 4.0km/h 2.49mph
Travel Speed(Raised) 0.4km/h 0.25mph
Max. Working Slope X-1.5°/Y-3° X-1.5°/Y-3°
Up/Down Speed 20/20sec 20/20sec
S03-PACE – Scissor Lift
Weight & Power Metric British
Overall Weight(Lead-adic Battery) 570kg 1256lb
Overall Weight(Lithium Battery) 540kg 1190lb
Battery 24V/55Ah 24V/55Ah
Charger 24V/15A 24V/15A
Driving Motor 2×24VDC/0.6kW 2×24VDC/0.6kW
Lifting Motor 24VDC/1.4kW 24VDC/1.4kW
S03-PACE – Scissor Lift
Download PDF

Note: Parameters with “★” are optional
