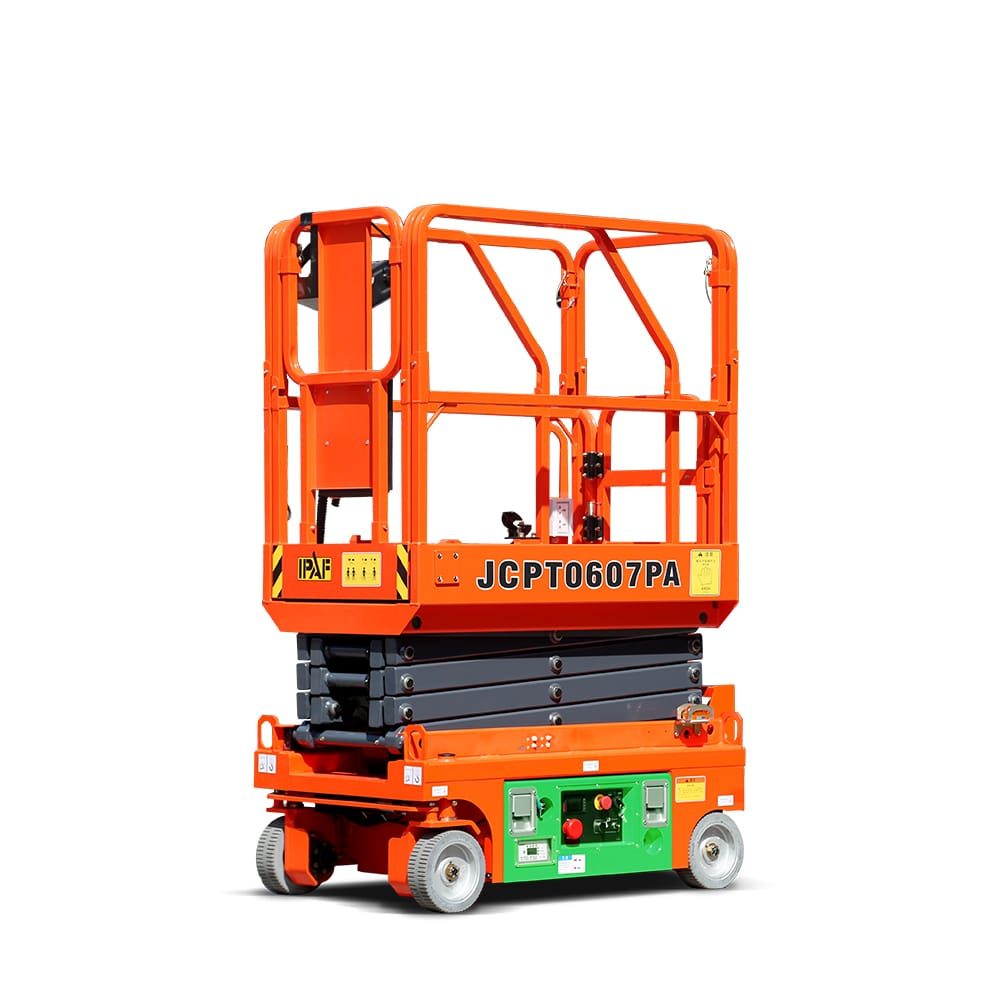

S036-PACE – Scissor Lift

Mini Oil Free Scissor

  • Low energy consumption – 30% energy saving compared with the traditional hydraulic system.
  • Safe – higher levels of water and dust resistance, with built-in position sensors & real-time data monitoring.
  • Easy maintenance – no hydraulic system & equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.
  • More comfortable – full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of traditional hydraulic systems, providing a better user experience.
  • More environmentally friendly – operational noise is lower than traditional hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.
ADD TO QUOTE
Categories: , Tags: ,

Description

S036-PACE – Scissor Lift
Features
Proportional Joystick Controls
Self-Locking Gates
One-Way Platform Extension Deck
Drivable At Full Height
Non-Marking Tyres
Two-Wheel Drive
Two-Wheel Steering
Automatic Braking System
Emergency Descent System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
S036-PACE – Scissor Lift
Size Metric British
Max. Working Height 5.60m 18ft 5in
Max. Platform Height 3.60m 11ft 10in
Overall Length 1.44m 4ft 9in
Overall Width 0.76m 2ft 6in
Overall Height(Rails Up) 1.99m 6ft 6in
Overall Height(Rails Down) 1.62m 5ft 4in
Platform Size(Length×Width) 1.29m×0.70m 4ft 3in×2ft 4i
Platform Extension Size 0.60m 2ft
Ground Clearance(Stowed/Raised) 0.06m/0.015m 2in/1in
Wheelbase 1.05m 3ft 5in
TurningRadius(Inside/Outside) 0.40m/1.55m 1ft 4in/5ft 1in
Tyres φ230×80mm φ230×80mm
S036-PACE – Scissor Lift
Performance Metric British
SWL 240kg 529lb
SWL On Extension 100kg 220lb
Max. Occupants 2 2
Gradeability 25% 25%
Travel Speed(Stowed) 4.0km/h 2.49mph
Travel Speed(Raised) 0.5km/h 0.31mph
Max. Working Slope X-1.5°/Y-3° X-1.5°/Y-3°
Up/Down Speed 22/22sec 22/22sec
S036-PACE – Scissor Lift
Weight & Power Metric British
Overall Weight 920kg 2028lb
Battery 24V/85Ah 24V/85Ah
Charger 24V/15A 24V/15A
Driving Motor 2x24VDC/0.7kW 2x24VDC/0.7kW
Lifting Motor 24VDC/1.4kW 24VDC/1.4kW
S036-PACE – Scissor Lift
Download PDF

Note: Parameters with “★” are optional
