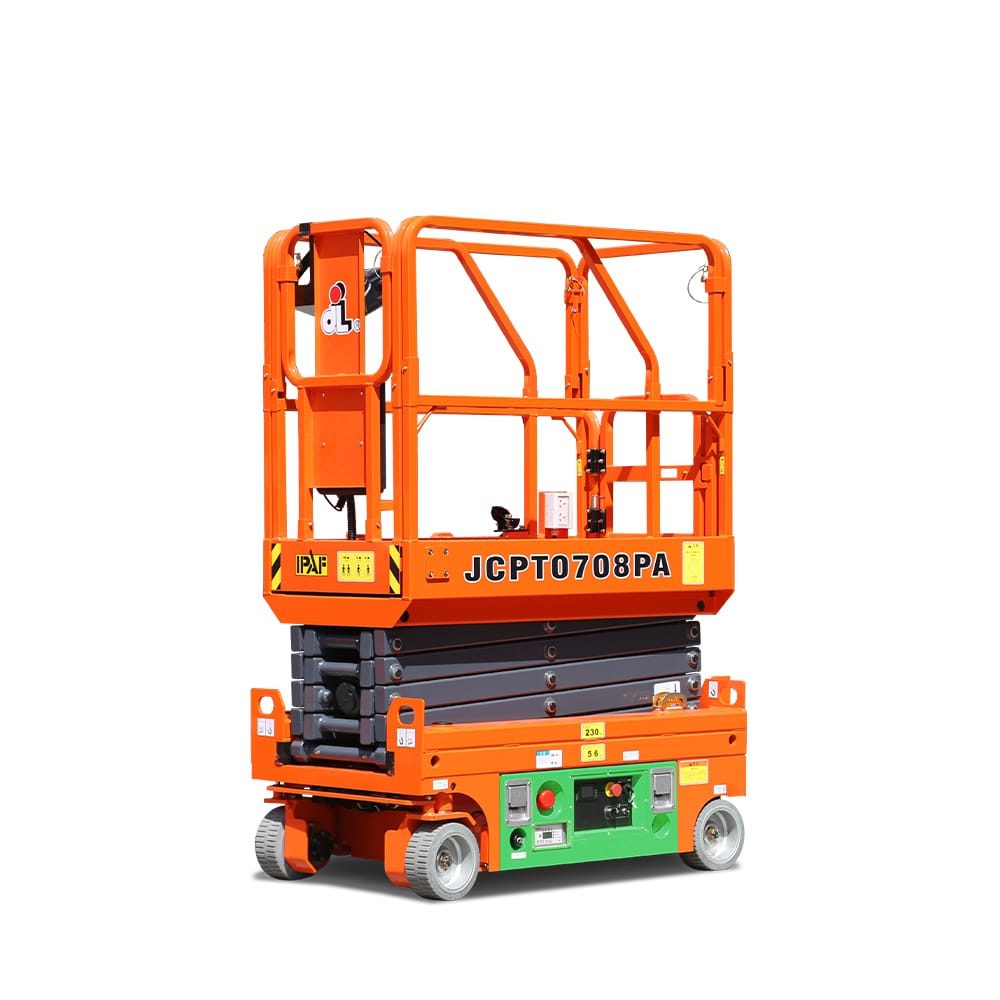

S056-PACE – Scissor Lift

Mini Oil Free Scissor

  • Low energy consumption – 30% energy saving compared with the traditional hydraulic system.
  • Safe – higher levels of water and dust resistance, with built-in position sensors & real-time data monitoring.
  • Easy maintenance – no hydraulic system & equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.
  • More comfortable – full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of traditional hydraulic systems, providing a better user experience.
  • More environmentally friendly – operational noise is lower than traditional hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.
ADD TO QUOTE
Categories: , Tags: ,

Description

S056-PACE – Scissor Lift
Features
Proportional Joystick Controls
Self-Locking Gates
One-Way Platform Extension Deck
Drivable At Full Height
Non-Marking Tyres
Two-Wheel Drive
Two-Wheel Steering
Automatic Braking System
Emergency Descent System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
S056-PACE – Scissor Lift
Size Metric British
Max. Working Height 7.60m 24ft 11in
Max. Platform Height 5.60m 18ft 4in
Overall Length 1.52m 5ft
Overall Width 0.81m 2ft 8in
Overall Height(Rails Up) 2.01m 6ft 7in
Overall Height(Rails Down) 1.65m 5ft 5in
Platform Size(Length×Width) 1.37m×0.70m 4ft 6in×2ft 4in
Platform Extension Size 0.60m 2ft
Ground Clearance(Stowed/Raised) 0.06m/0.015m 2in/1in
Wheelbase 1.13m 3ft 8in
TurningRadius(Inside/Outside) 0.45m/1.60m 1ft 6in/5ft 3in
Tyres φ230×100mm φ230×100mm
S056-PACE – Scissor Lift
Performance Metric British
SWL 230kg 507lb
Max. Occupants 113kg 249lb
Gradeability 2 2
Travel Speed(Stowed) 25% 25%
Travel Speed(Raised) 4.0km/h 2.49mph
Max. Working Slope 0.6km/h 0.37mph
Up/Down Speed X-1.5°/Y-3° X-1.5°/Y-3°
22/22sec 22/22sec
S056-PACE – Scissor Lift
Weight & Power
Overall Weight 1340kg 2954lb
Battery 24V/115Ah 24V/115Ah
Charger 24V/15A 24V/15A
Driving Motor 2x24VDC/0.7kW 2x24VDC/0.7kW
Lifting Motor 24VDC/1.8kW 24VDC/1.8kW
S056-PACE – Scissor Lift
Download PDF

Note: Parameters with “★” are optional
