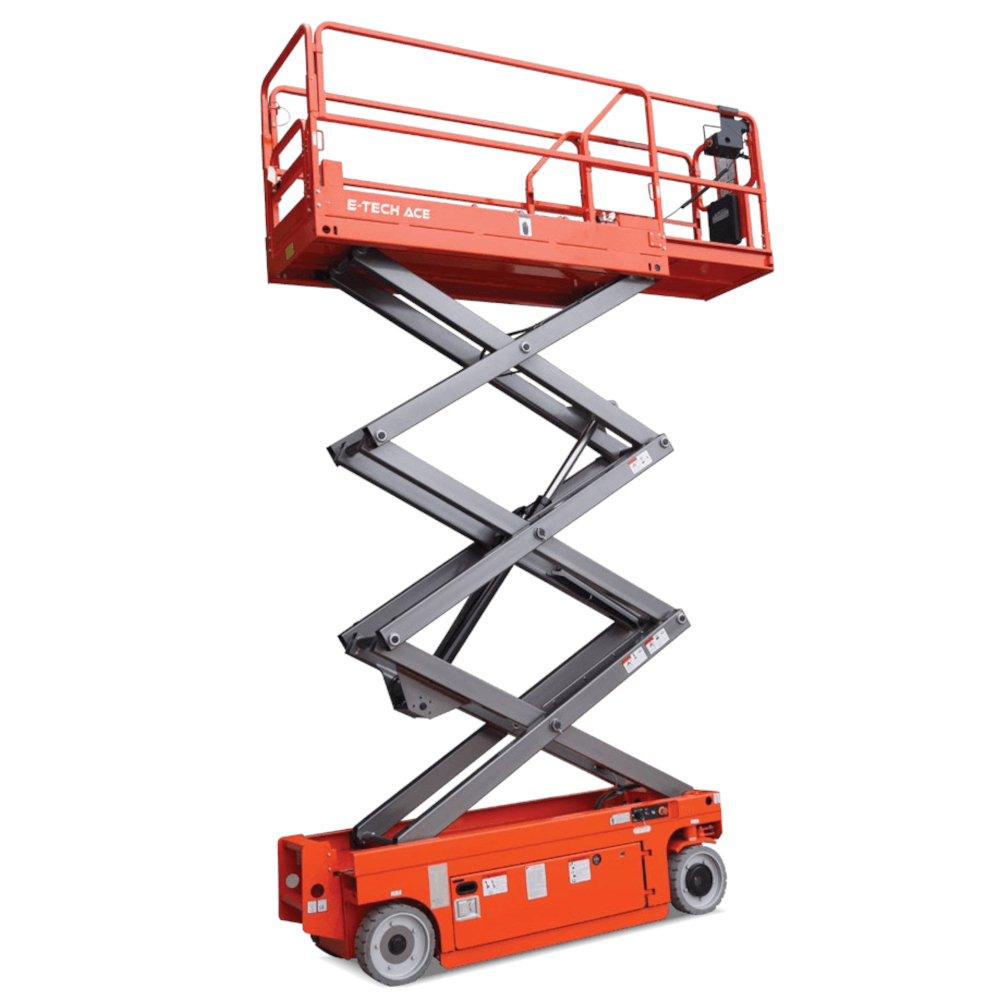

S0608-ACE – Scissor Lift

AC Powered Scissor Lift

The new E-TECH ACE range of electric scissor lifts from Dingli cater to customers looking for a more environmentally friendly lifting solution. The new range features a fully sealed AC driving and lifting system, replacing traditional DC systems whilst providing advantages including:

Maintenance free
Increased IP67 protection against dust and liquids
Increased efficiency
Increased safety

All units are manufacturer guaranteed for two years

ADD TO QUOTE

Description

S0608-ACE Scissor Lift

Features

Updated Control System

Spare Parts

Increased Safety

Drive Update

Upgraded Charging System

Increased Optional Extra Features

S0608-ACE Scissor Lift
Size	Metric
Max. Working Height	8 m
Max. Platform Height	6 m
Overall Length	2.48 m
Overall Width	0.83 m
Overall Height(Rails Up)	2.23 m
Overall Height(Rails Down)	1.87 m
Platform Size(Length×Width)	2.27 x 0.81 m
Platform Extension Size	0.9 m
Ground Clearance(Stowed/Raised)	0.10 m / 0.017 m
Wheelbase	1.87 m
Turning Radius	0 m / 2.1 m
Tyres	ø 381 x 127 m

S0608-ACE Scissor Lift
Performance	Metric
SWL	380 kg
SWL On Extension	113 kg
Max. Occupants (Indoor/Outdoor)	2
Gradeability	25 %
Travel Speed(Stowed)	5 km/h
Travel Speed(Raised)	0.8 km/h
Max. Working Slope	1.5 ° / 3°
Up/Down Speed	25 / 42 sec

S0608-ACE – Scissor Lift
Weight & Power	Metric
Lead Acid Battery Type	2,160 kg
Lithium Battery Type	2,100 kg
Battery	24 V / 170Ah
Charger	24 V / 30 A
Driving Motor	2 x 24 VAC / 0.87 kW
Lifting Motor	24 VAC / 3.5 kW
