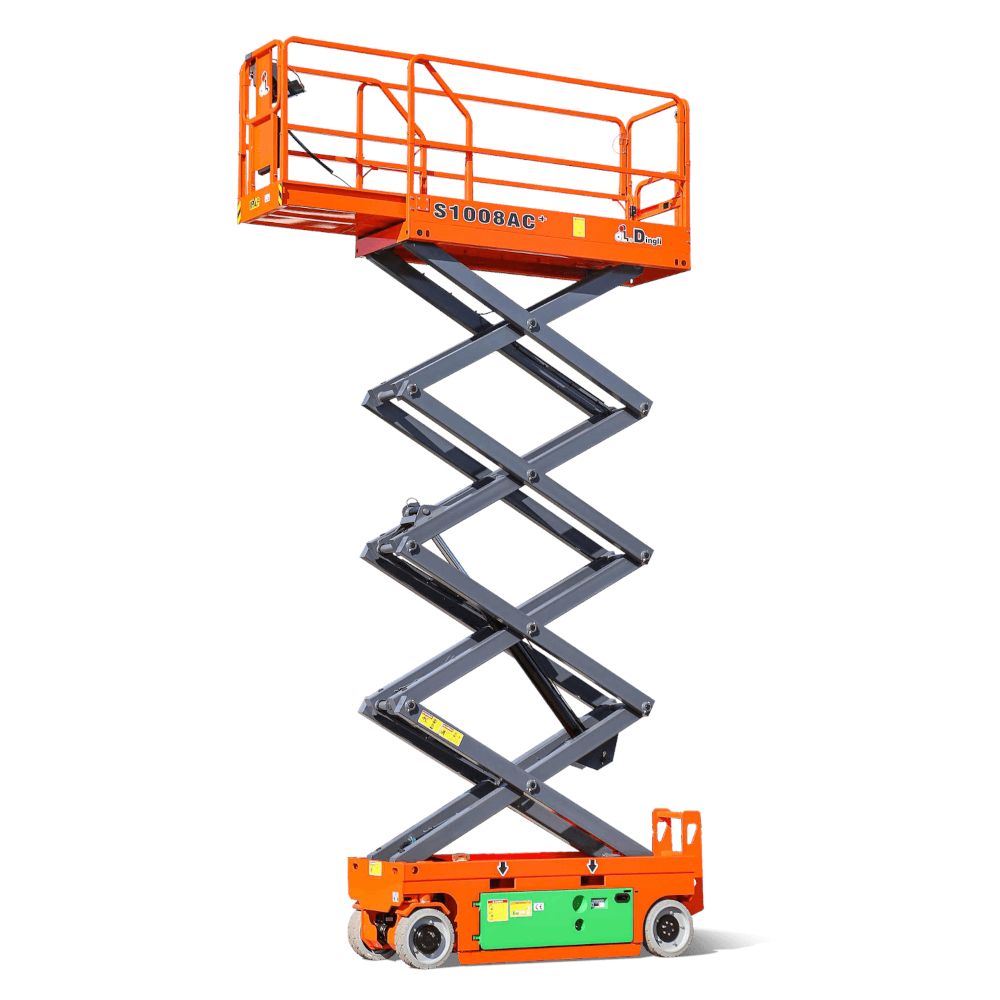

S1008-ACE+ – Scissor Lift

ACE+ 14 Upgrades:

  1. Industry Leading Platform Capacity
  2. Side and Rear Forklift Pockets
  3. Lithium-lon Battery with Long Duty Cycle and Fast Recharging
  4. High Strength Wear Resistant Tyre Compound
  5. Integrated Four-in-One Motor Controller
  6. New Platform Control Box – More Durable & Larger Display
  7. Reliable Load Sensing System – Less Affected by Temperature
  8. Scissor Angle Sensor Reliability Improvement – 60% Reduction in Limit Switches
  9. Hydraulic Oil Heater (Optional) – for Cold Environments
  10. Hydraulic Oil Leak Containment
  11. Electric Actuator Steering System –  No Hydraulic Oil & 66% Decrease in Energy Consumption
  12. Regenerative Charging on Platform Decent – Tops Battery Up When Lowering Platform
  13. Drive System – 15% Decrease in Energy Consumption
  14. Lift Pump – 20% Decrease in Energy Consumption
ADD TO QUOTE
Categories: , Tag:

Description

S1008-ACE+ Scissor Lift
Features
Proportional Joystick Controls
Self-lock Gate On Platform
Drivable At Full Height
Non-Marking Tires
Two-Wheel Drive
Two-Wheel Steering
Automatic Brake System
Emergency Descent System
Cylinder Holding Valve
Onboard Diagnostic System
Tilt Alarm
All Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
One-Way Platform Extension Deck
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
Hydraulic Oil Receiver
Pure Electric Steering System
Kinetic Energy Recovery System
S1008-ACE+ Scissor Lift
Dimension Metric British
Max. Working Height(Indoor) 12.00m 39ft 4in
★ Max. Working Height(Outdoor) 9.30m 30ft 6in
Max. Platform Height(Indoor) 10.00m 32ft 10in
★ Max. Platform Height(Outdoor) 7.30m 23ft 11in
Overall Length 2.48m 8ft 2in
Overall Width 0.83m 2ft 9in
Overall Height(Rails Up) 2.51m 8ft 3in
Overall Height(Rails Down) 2.05m 6ft 9in
Platform Size(Length×Width） 2.27m×0.81m 7ft 5in×2ft 8in
Platform Extension Size 0.90m 2ft 11in
Ground Clearance(Stowed/Raised) 0.10m/0.019m 4in/1in
Wheelbase 1.87m 6ft 2in
Turning Radius(Inside/Outside) 0m/2.10m 0in/6ft 11in
Tyres φ381×127mm φ381×127mm
S1008-ACE+ Scissor Lift
Performance Metric British
S.W.L 250kg 551lb
S.W.L on Extension 113kg 249lb
Max. Occupants (Indoor/Outdoor) 2/0 2/0
★ Max. Occupants (Indoor/Outdoor) 2/1 2/1
Gradeability 25% 25%
Travel Speed(Stowed) 6.0km/h 3.73mph
Travel Speed(Raised) 0.8km/h 0.50mph
Max. Working Slope X-1.5°/Y-3° X-1.5°/Y-3°
Up/Down Speed 54/42sec 54/42sec
S1008-ACE+ Scissor Lift
Weight & Power Metric British
Overall Weight 3150kg 6945lb
Hydraulic Tank 20L 5.3gal
Lithium Battery 28.8V/175Ah 28.8V/175Ah
Charger 28V/30A 28V/30A
Driving Motor 2×15VAC/0.87kW 2×15VAC/0.87kW
Lifting Motor 15VAC/3.42kW 15VAC/3.42kW
S1008-ACE+ Scissor Lift
Download PDF

Note: Parameters with “★” are optional
