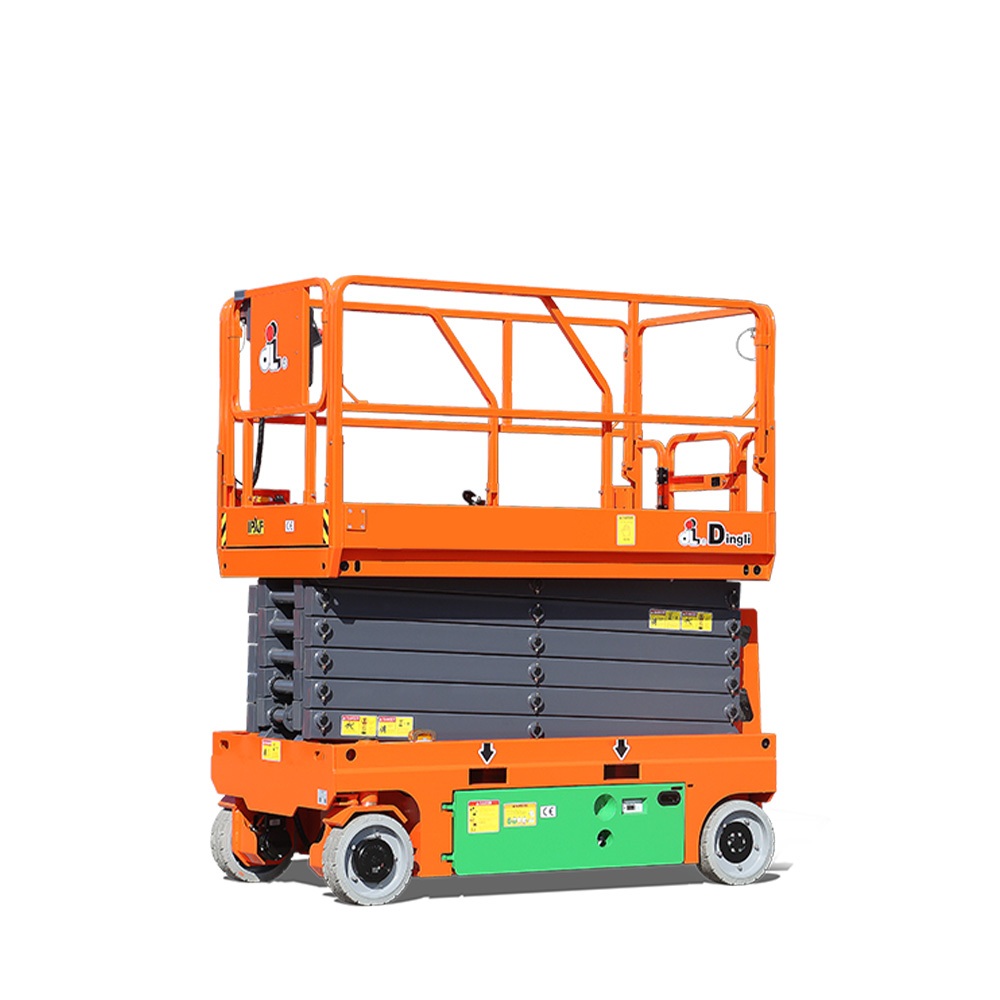

S1215-ACE+ – Scissor Lift

ACE+ 14 Upgrades:

  1. Industry Leading Platform Capacity
  2. Side and Rear Forklift Pockets
  3. Lithium-lon Battery with Long Duty Cycle and Fast Recharging
  4. High Strength Wear Resistant Tyre Compound
  5. Integrated Four-in-One Motor Controller
  6. New Platform Control Box – More Durable & Larger Display
  7. Reliable Load Sensing System – Less Affected by Temperature
  8. Scissor Angle Sensor Reliability Improvement – 60% Reduction in Limit Switches
  9. Hydraulic Oil Heater (Optional) – for Cold Environments
  10. Hydraulic Oil Leak Containment
  11. Electric Actuator Steering System –  No Hydraulic Oil & 66% Decrease in Energy Consumption
  12. Regenerative Charging on Platform Decent – Tops Battery Up When Lowering Platform
  13. Drive System – 15% Decrease in Energy Consumption
  14. Lift Pump – 20% Decrease in Energy Consumption
ADD TO QUOTE
Categories: , Tag:

Description

S1215 ACE+ – Scissor lift
Features
Proportional Joystick Controls
Self-lock Gate On Platform
Drivable At Full Height
Non-Marking Tires
Two-Wheel Drive
Two-Wheel Steering
Automatic Brake System
Emergency Descent System
Cylinder Holding Valve
Onboard Diagnostic System
Tilt Alarm
All Motion Alarm
Horn
Hour Meter
Safety Arm For Troubleshooting
Standard Transport Forklift Holes
One-Way Platform Extension Deck
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Automatic Pothole Protection
Drive Enable
Charging Indicator
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Platform Load Sense System
Emergency Stop Button
Hydraulic Oil Receiver
Pure Electric Steering System
Kinetic Energy Recovery System
S1215 ACE+ – Scissor lift
Size Metric British
Max. Working Height(Indoor) A 14.0m 45ft 11in
Max. Platform Height(Indoor) B 12.00m 39ft 4in
Overall Length C 3.00m 9ft 10in
Overall Width D 1.50m 4ft 11in
Overall Height(Rails Up) E 2.84m 9ft 4in
Overall Height(Rails Down) F 2.30m 7ft 6in
Platform Size(Length ×Width） 2.84mx1.50m 9ft 4inx4ft 11in
Platform Extension Size G 1.42m 4ft 8in
Ground Clearance(Stowed/Raised) 0.16m/0.022m 6in/1in
Wheelbase H 2.33m 7ft 8in
Turning Radius(Inside/Outside) 0.50m/3.00m 1ft 8in/9ft 10in
Tyres φ470×180mm φ470×180mm
S1215 ACE+ – Scissor lift
Performance Metric British
S.W.L 454kg 1000lb
S.W.L on Extension 136kg 300lb
Max. Occupants (Indoor/Outdoor) 3/2 3/2
Gradeability 30% 30%
Travel Speed(Stowed) 6.0km/h 3.73mph
Travel Speed(Raised) 0.8km/h 0.5mph
Max. Working Slope 1.5°/Y-3° 1.5°/Y-3°
Up/Down Speed 72/67sec 72/67sec
S1215 ACE+ – Scissor lift
Weight & Power Metric British
Overall Weight 4730kg 10428lb
Hydraulic Tank 25L 6.4gal
Lithium Battery 24V/420Ah 24V/420Ah
Charger 28V/30A 28V/30A
Driving Motor 4×15VAC/0.87kW
4×15VAC/0.87kW
Lifting Motor 15VAC/4.5kW 15VAC/4.5kW
S1215 ACE+ – Scissor lift
Download PDF

Note: Parameters with “★” are optional
