Description

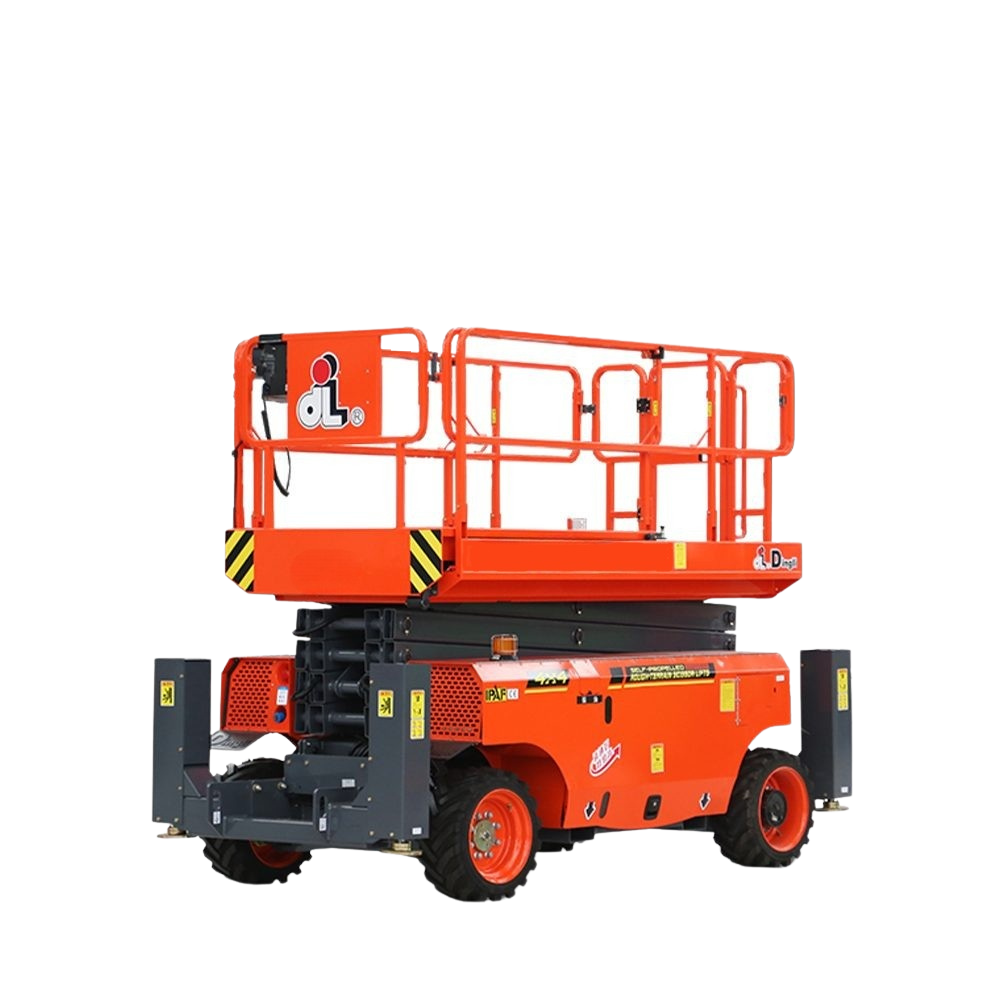

| SC1018-AWD – Scissor Lift |
| Features |
| Proportional Joystick Controls |
| Self-Locking Gates |
| One-Way Platform Extension Deck |
| 4 x 4 Drive |
| Four-Wheel Braking |
| Automatic Braking System |
| Self-Weight Lowering System |
| Tubing Explosion-Proof System |
| Onboard Fault Diagnostic System |
| Tilt Alarm |
| Motion Alarm |
| Horn |
| Hour Meter |
| Hydraulic Oil Cooling System |
| Drivable At Full Height |
| Flashing LED Beacon |
| Foldable Guard Rails |
| Drive Enable |
| Emergency Stop Button |
| Manual Brake Release |
| Lanyard Attachment Point |
| Platform Load Sense System |
| Automatic Leveling Hydraulic Outriggers |
| Anti-Restart Engine Protection |
| Oscillating Axle Chassis |
| SC1018-AWD – Scissor Lift | ||
| Size | Metric | British |
| Max. Working Height | 12.00m | 39ft 4in |
| Max. Platform Height | 10.00m | 32ft 10in |
| Overall Length (Without Outriggers) | 3.19m | 10ft 6in |
| Overall Length (With Outriggers) | 3.84m | 12ft 7in |
| Overall Width | 1.76m | 5ft 9in |
| Overall Height (Rails Up) | 2.59m | 8ft 6in |
| Overall Height (Rails Down) | 1.82m | 6ft |
| Platform Size (Length×Width) | 2.88m×1.52m | 9ft 5in × 5ft |
| Platform Extension Size | 1.43m | 4ft 8in |
| Ground Clearance | 0.24m | 9in |
| Wheelbase | 2.29m | 7ft 6in |
| Turning Radius (Inside/Outside) | 2.15m/4.85m | 7ft 1in/15ft 11in |
| Tyres | 26×12-16.5 | 26×12-16.5 |
| SC1018-AWD – Scissor Lift | ||
| Performance | Metric | British |
| SWL | 454kg | 1000lb |
| SWL On Extension | 136kg | 299lb |
| Max. Occupants | 4 | 4 |
| Gradeability | 40% | 40% |
| Travel Speed(Stowed) | 5.0km/h | 3.10mph |
| Travel Speed(Raised) | 0.45km/h | 0.28mph |
| Max. Working Slope | X-1.5°/Y-3 | X-1.5°/Y-3 |
| Up/Down Speed | 38/46sec | 38/46sec |
| SC1018-AWD – Scissor Lift | ||
| Weight & Power | Metric | British |
| Overall Weight(Without Outriggers) | 3900kg | 8598lb |
| Overall Weight(With Outriggers) | 4300kg | 9479lb |
| Diesel Engine | 18.6kW/2400rpm | 18.6kW/2400rpm |
| Diesel Tank | 47L | 12gal 4pt |
| Hydraulic Tank | 71L | 18gal 7pt |
