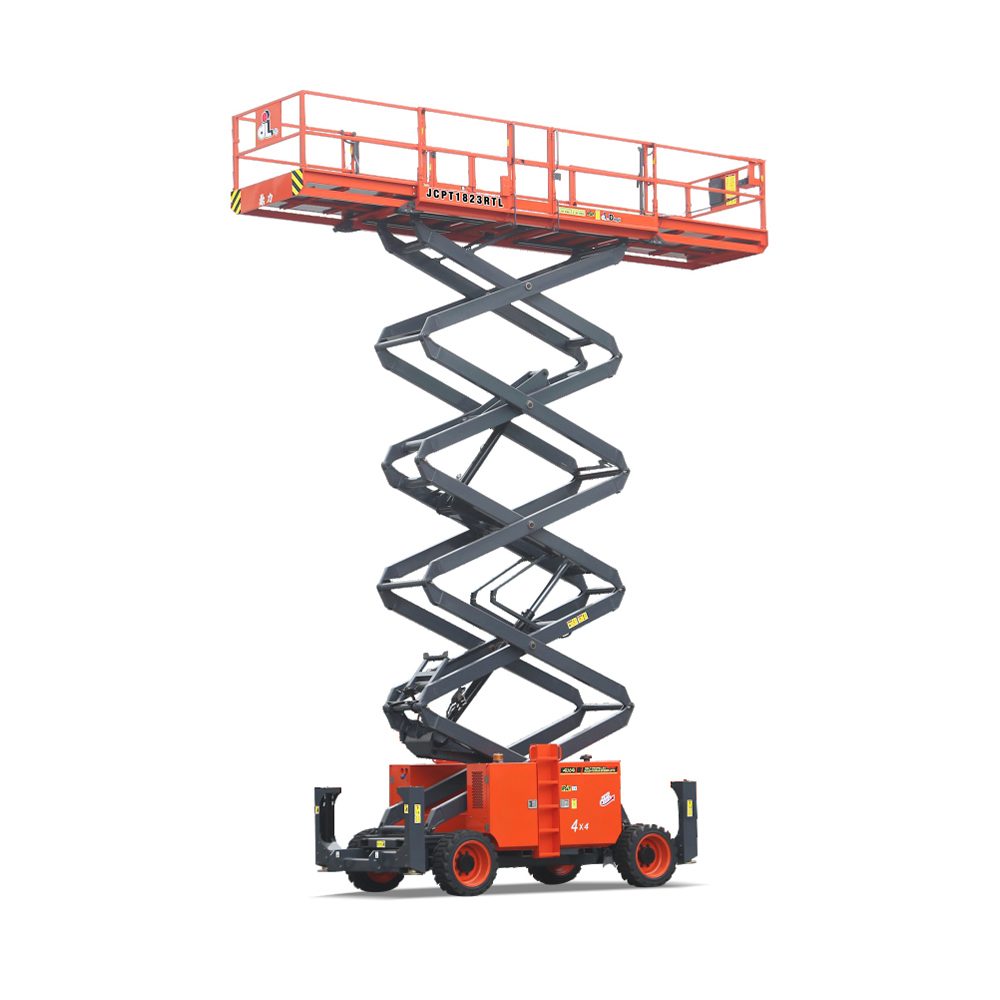

SL1623 – Rough Terrain Scissor Lift

Large All Terrain Scissor Series

  • Equipped with an integrated axle meeting varied requirements of 4WD&2WS, offering flexible operation and solid rough-terrain performance.
  • Diesel models are equipped with energy efficient yet powerful 18.2kW engines.
  • With maximum loads of 680kg and maximum working heights of 15m or 18m, the large platforms enable 4-7 people to work safely and comfortably.
  • All units feature a large 3.98m x 1.83m working platform with two-way extension decks measuring 1.43m x 1.16m respectively, which can be stopped at any point providing flexible operation.
  • With configuration of one key levelling function & automatic levelling, ensuring safe and stable operation.
ADD TO QUOTE
Categories: , Tag:

Description

SL1623-AWD – Scissor Lift
Features
Proportional Joystick Controls
Self-Locking Gates
Dual Slide-Out Platform Extension Deck
4×4 Drive
Drive axle
Wheel Braking
Self-Weight Lowering System
Tubing Explosion-Proof System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Hydraulic Oil Cooling System
Flashing LED Beacon
Foldable Guard Rails
Drive Enable
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Automatic Leveling Hydraulic Outriggers
Anti-Restart Engine Protection
Emergency Pump
Emergency Stop Button
Platform Load Sense System
Oscillating Axle Chassis
SL1623-AWD – Scissor Lift
Size Metric British
Max. Working Height 18.00m 59ft 1in
Max. Platform Height 16.00m 52ft 6in
Overall Length 4.88m 16ft
Overall Width 2.33m 7ft 8in
Overall Height(Rails Up) 3.23m 10ft 7in
Overall Height(Rails Down) 2.47m 8ft 1in
Platform Size(Length×Width) 3.98m×1.83m 13ft 1in ×6ft
Platform Extension Size 1.43m/1.16m 4ft 8in/3ft 10in
Ground Clearance 0.30m 1ft
Wheelbase 2.86m 9ft 5in
TurningRadius(Inside/Outside) 2.35m/5.20m 7ft 9in/17ft 1in
Tyres 315/55/D20 315/55/D20
SL1623-AWD – Scissor Lift
Performance Metric British
SWL 680kg 1499lb
SWL On Extension 227kg 500lb
Max. Occupants 4 4
Gradeability 30% 30%
Travel Speed(Stowed) 5.0km/h 3.11mph
Travel Speed(Raised) 1.1km/h 0.68mph
Max. Working Slope X-2°/Y-3° X-2°/Y-3°
Up/Down Speed 75/74sec 75/74sec
SL1623-AWD – Scissor Lift
Weight & Power Metric British
Overall Weight 8560kg 18872lb
Diesel Engine 18.2kW/3000rpm 18.2kW/3000rpm
Diesel Tank 100L 26gal
Hydraulic Tank 120L 31gal

Note: Parameters with “★” are optional
