Available In:

DieselElectric

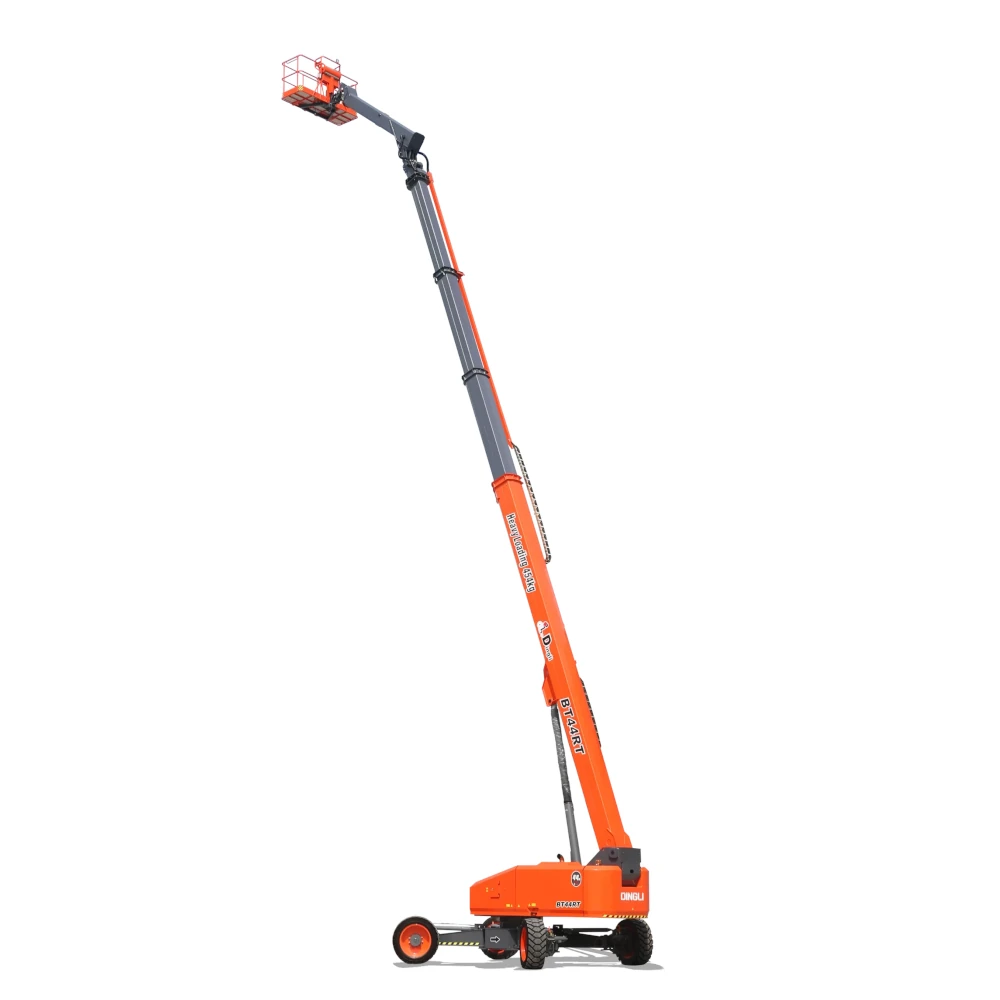

BT44RT – Boom Lift

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

● Patented innovation of one key in-situ axle expansion, four-wheel drive & steering, axle expansion & retraction in narrow space at will;

● 40% increase in action efficiency compare with equivalent products in the industry;

● Cat3 safety architecture, full redundancy of electronic control software & hardware;

● Jib with 230°amplitude, which can be hooked back to suit standard container transport;

● Equipped with 55.4kw high power engine, gradeability up to 45%.

ADD TO QUOTE
Categories: ,

Description

BT44RT – Boom Lift
Features
Load Sense System
12 V DC Auxiliary Power
Hydraulic Oil Radiator
Harsh Environment Kits
Fault Diagnosis System
Turntable Protection Lock
High Stiffness Boom System
Fully-Opened Chassis Cover
AC Power Cord To Platform
Descent & Movement Alarms
180°Left & Right Swing Platform
Platform Rotation Angle Monitoring
Platform Bottoming Out Protection
Proportional Joystick Controls
Loose & Broken Chain Monitoring
Fast & Slow Speed Monitoring
Working Condition Monitoring
Engine Start & Stop Protection
Rexroth Hydrostatic Drive System
Automatic Steering Angle Matching
Drive Forced Shunt & Merge Function
Horn
Tilt Alarm
Hour Meter
Drive Enable
Flashing Beacon
Four-Wheel Drive
Four-Wheel Steering
In-Situ Axle Expansion
Self-Levelling Platform
Negative Pressure Brake With Detection
Real-Time Machine Status Display System
Cat.3 Safety Architecture – ISO 13849-1
Operator Anti-Extrusion Protection System
Deutz TD2.9 L4 55.4kW 2600rpm Diesel Engine
4.2m Amplitude Flexible Jib With Angle Detection
360°Turntable Continuous Rotation With Inspection
Expandable Chassis With Proprietary Patented Design
BT44RT – Boom Lift
Size Metric British
Max. Working Height 44.44m 146ft
Max. Platform Height 42.44m 139ft 3in
Max. Operating Range 25.60m 83ft 12in
Max. Platform Range 25.00m 82ft
Flatbed Transport Dimensions (L×W×H) 11.92m×2.44m×2.83m 39ft 1in×8ft×9ft 3in
Standard Container Transport All Applicable All Applicable
Overall Width(Axle Expanded) 4.17m 13ft 8in
Overall Width(Axle Retracted) 2.44m 8ft
Platform Size(Length×Width) 2.44m×0.91m 8ft×3ft
Turntable Tailswing(Axle Retracted) 2.28m 7ft 6in
Ground Clearance 0.40m 1ft 4in
Wheelbase(Axle Expanded) 4.07m 13ft 4in
Wheelbase(Axle Retracted) 4.27m 14ft
BT44RT – Boom Lift
Performance Metric British
S.W.L(Unrestricted/Restricted) 300kg/454kg 661lb/1000lb
Max. Occupants 3 3
Gradeability 45% 45%
Travel Speed(Stowed) 6.0km/h 3.73mph
Travel Speed(Raised) 1.1km/h 0.68mph
Max. Working Slope 5° 5°
Turret Rotation 360°Continuous 360°Continuous
Platform Rotation 180° 180°
Jib Movement 230° 230°
Main Boom Maximum Angle 75° 75°
Turning Radius(Axle Expanded) 2.99m/5.41m 10ft/17ft 9in 27ft
Turning Radius(Axle Retracted) 8.27m/10.85m 2in/35ft 7in
Tyres 445/50-D710 445/50-D710
BT44RT – Boom Lift
Weight & Power Metric British
Weight 22500kg 49604lb
Emergency Power System 12V 12V DC
Diesel Engine – Deutz TD2.9 L4 Deutz TD2.9 L4/55.4kW Deutz TD2.9 L4/55.4kW
Diesel Tank 150L 39gal
Hydraulic Tank 230L 61gal

Note: Parameters with “★” are optional
