Isoli PT160 HH

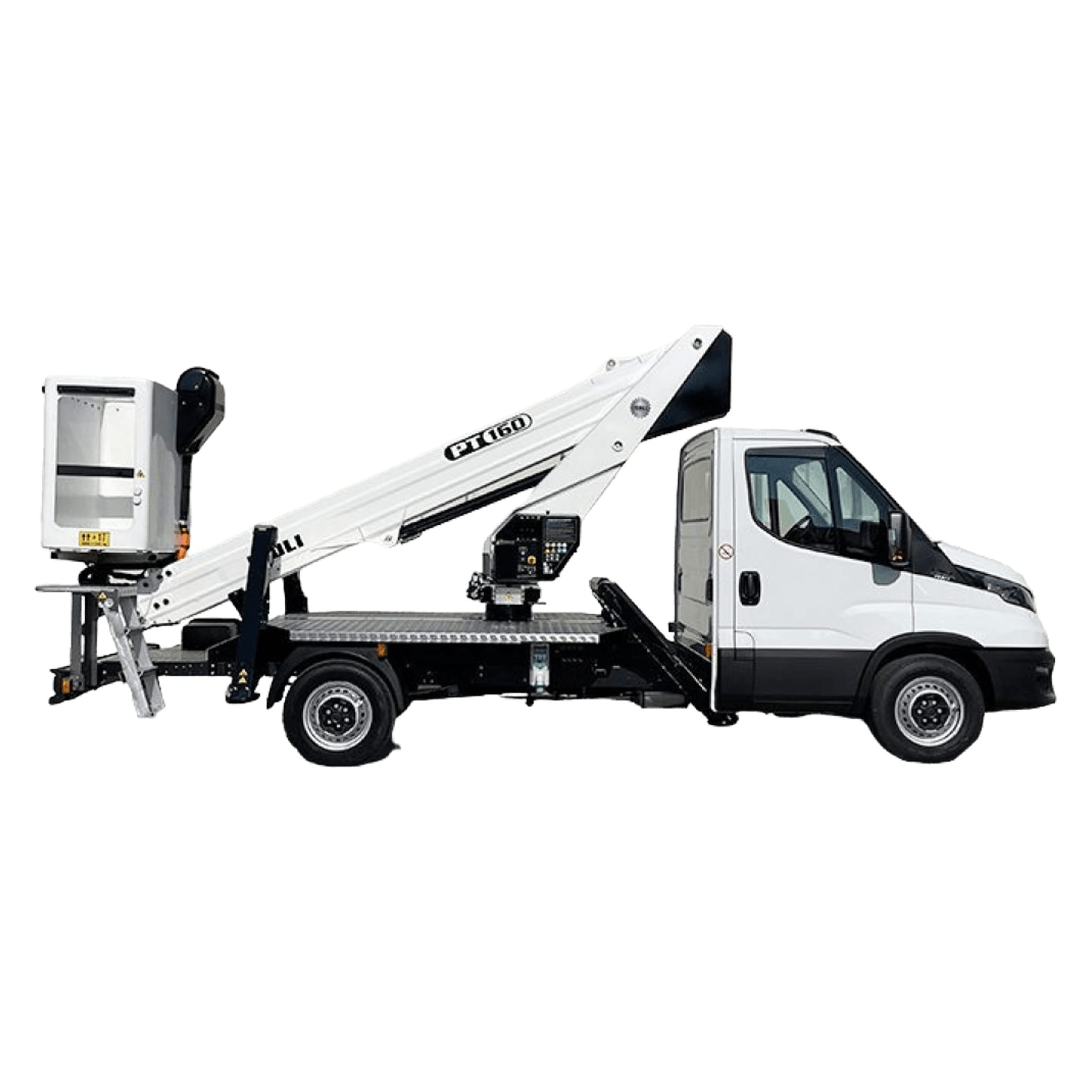

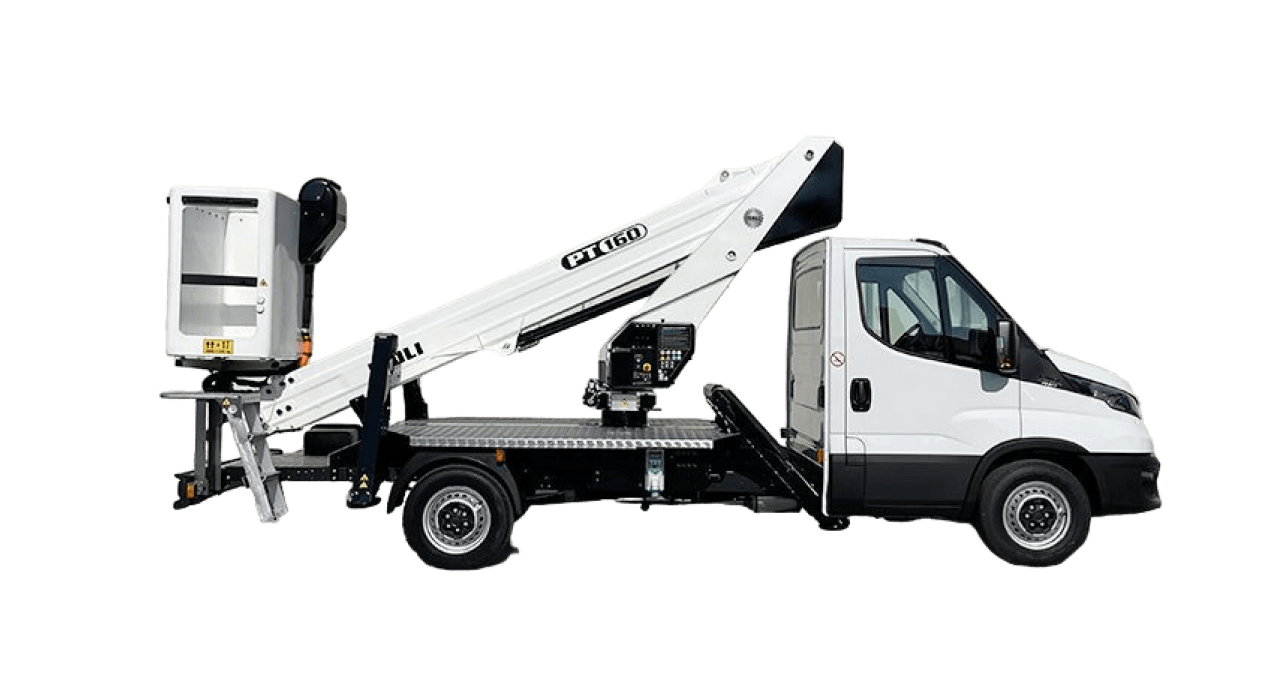

The boom lift chassis cab ISOLI PT 160 is a telescopic aerial lift mounted on 3500 kg cab body vehicles. Capable of reaching a working height of 16 m and an outreach of 8.90 m with a load capacity of 250 kg, this telescopic aerial lift truck is perfectly designed for lifting 2 operators + their materials during installation or repairing works.

Everything has been designed to make this vehicle quick to set-up and easy to handle. Starting with its compact dimensions, ISOLI’s R&D department has worked hard to offer a smaller vehicle without compromising lifting performance and mechanical reliability. The result is right in front of you. The PT 160 is a truck-mounted aerial platform that fits perfectly to various road conditions. You will be able to perform interventions in both urban areas and on roads or construction sites.

ADD TO QUOTE

Description

PT160 HH – Truck Mounted Boom Lift
Features
Compact telescopic boom lift
Mounted to a compact Iveco Daily chassis
Two-Wheel Steering
Rear Wheel Drive
Self-Leveling Outriggers
Upper Structure Rotation 400 degrees
Proportional Hydraulic Controls
Compact, Quick and Easy to Set Up
Fiberglass Basket
Platform Rotation 90 Degrees RH & 90 Degrees LH

PT160 HH – Truck Mounted Boom Lift
Size	Metric	British
Max. Working Height	16.0m	54ft 49in
Max. Platform Height	14.0m	45ft 93in
Max. Working Boom Extension	8.9m	29ft 2in
Overall Length(Stowed)	6.86m	22ft 5in
Overall Width	2.1m	6ft 9in
Overall Height(Stowed)	2.98m	9ft 78in
Platform Size(Length × Width)	1.4m x 0.72m	4ft 6in x 2ft 4in

PT160 HH – Truck Mounted Boom Lift
Performance	Metric	British
SWL	250kg	551lb
Max. Occupants	2	2
Boom Angle	-25 – +75 deg.	-25 – +75 deg.
Turret Rotation	400°	400°
Platform Rotation	180°	180°
