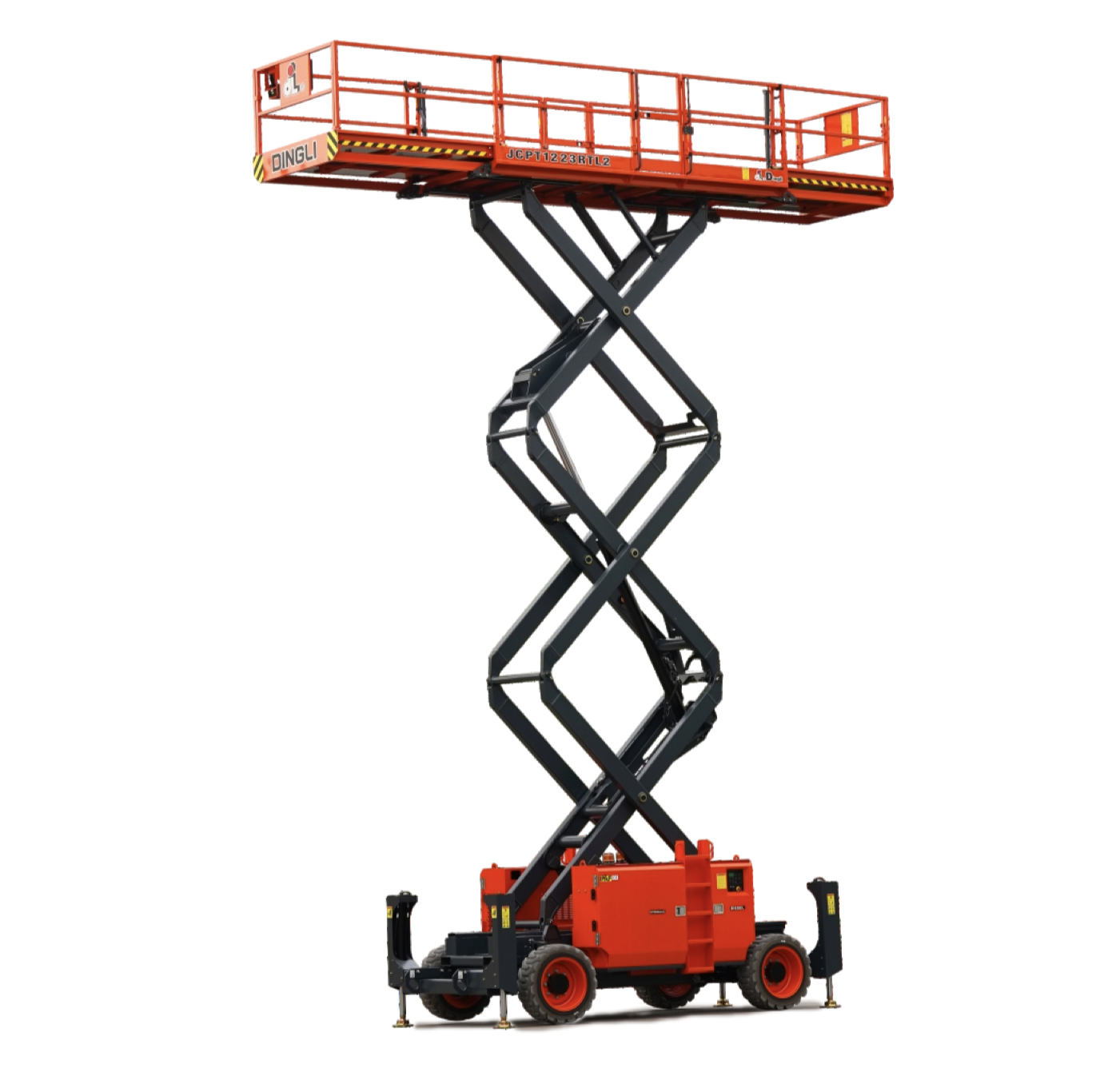

SL1023 – Rough Terrain Scissor Lift

Large All Terrain Scissor Series

  • Equipped with an integrated axle meeting varied requirements of 4WD & 2WS, offering flexible operation and solid rough-terrain performance.
  • Diesel models are equipped with energy efficient yet powerful 18.2kW engines.
  • With maximum load of 1134kg and maximum working height of 12m, the large platform enable 7 people to work safely and comfortably.
  • All units feature a large 4.88m x 1.83m working platform with two-way extension decks measuring 1.43m x 1.13m, which can be stopped at any point providing flexible operation.
  • With configuration of one key levelling function & automatic levelling, ensuring safe and stable operation.
ADD TO QUOTE
Categories: , Tag:

Description

Features

SL1023RTL2 – Scissor Lift
Proportional Joystick Controls
Self-Locking Gates
Dual Slide-Out Platform Extension Deck
4×4 Drive
Drive axle
Wheel Braking
Self-Weight Lowering System
Tubing Explosion-Proof System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Hour Meter
Hydraulic Oil Cooling System
Flashing LED Beacon
Foldable Guard Rails
Drive Enable
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Automatic Leveling Hydraulic Outriggers
Anti-Restart Engine Protection
Emergency Pump
Emergency Stop Button
Platform Load Sense System
Oscillating Axle Chassis
SL1023RTL2 – Scissor Lift
Size Metric British
Max. Working Height 12.00m 39ft 4in
Max. Platform Height 10.00m 32ft 10in
Overall Length(Without Outriggers) 4.88m 16ft
Overall Width(With Outriggers) 4.88m 16ft
Overall Width 2.33m 7ft 8in
Overall Height(Rails Up) 3.03m 9ft 10in
Overall Height(Rails Down) 2.27m 7ft 5in
Platform Size(Length×Width) 4.88m x 1.83m 16ft x 6ft
Platform Extension Size 1.43m/1.13m 4ft 8in/3ft 8in
Ground Clearance 0.30m 1ft
Wheelbase 2.86m 9ft 4in
TurningRadius(Inside/Outside) 2.70m/5.50m 8ft 10in/18ft
Tyres 315/55/D20 315/55/D20
SL1023RTL2 – Scissor Lift
Performance Metric British
SWL 1134kg 2500lb
SWL On Extension 227kg 500lb
Max. Occupants 7 7
Gradeability 40% 40%
Travel Speed(Stowed) 5.0km/h 3.1mph
Travel Speed(Raised) 1.0km/h 0.62mph
Max. Working Slope (X/Y) 2°/3° 2°/3°
Up/Down Speed 71/58sec 71/58sec
SL1023RTL2 – Scissor Lift
Weight & Power Metric British
Overall Weight(Without Outriggers) 6940kg 15300lb
Overall Weight(With Outriggers) 7840kg 17284lb
Diesel Engine 18.2kW/3000rpm 18.2kW/3000rpm
Diesel Tank 80L 21gal
Hydraulic Engine 120L 31gal
SL1023RTL2 – Scissor Lift
Download PDF (Diesel)

Note: Parameters with “★” are optional
